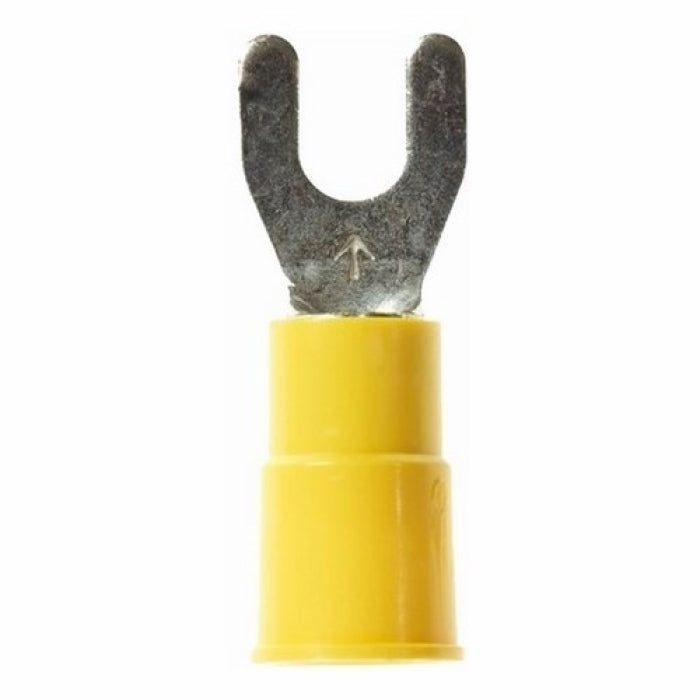

3M FV10-8Q Highland Insulated Standard Fork Terminal 12 to 10 AWG Yellow

Product Description

3M Highland FV10-8Q is an insulated standard fork terminal designed for use with 12 to 10 AWG conductors. The yellow terminal features a butted seam barrel construction that provides a secure fit on free-standing studs. The electrolytic copper material offers good conductivity, and the terminal is rated for temperatures between negative forty to two hundred twenty-one degrees Fahrenheit.

• Insulated for safety with PVC material.
• Supports wire sizes from 12 AWG to 10 AWG.
• Meets UL and CSA safety standards.

Product Highlights

This product ensures a secure connection while providing reliable electrical performance in various applications.

Product Information

Standard Information

• Brand: 3M
• MPN: FV10-8Q

Technical Specifications

• Length: 1.03 inches
• Width: 0.38 inches
• Thickness: 0.04 inches
• Stud Size: #8
• Conductor Size: 12-10 AWG
• Temperature Rating: -40 to 221 degrees Fahrenheit
• Insulation Material: Vinyl
• Color: Yellow
