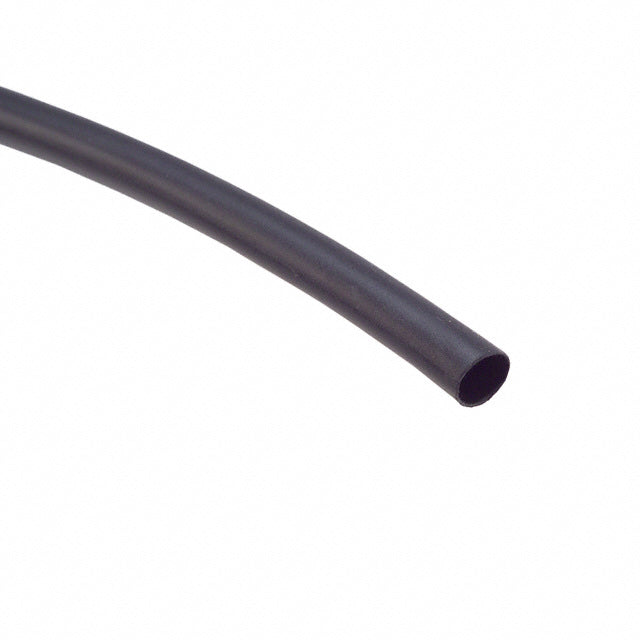

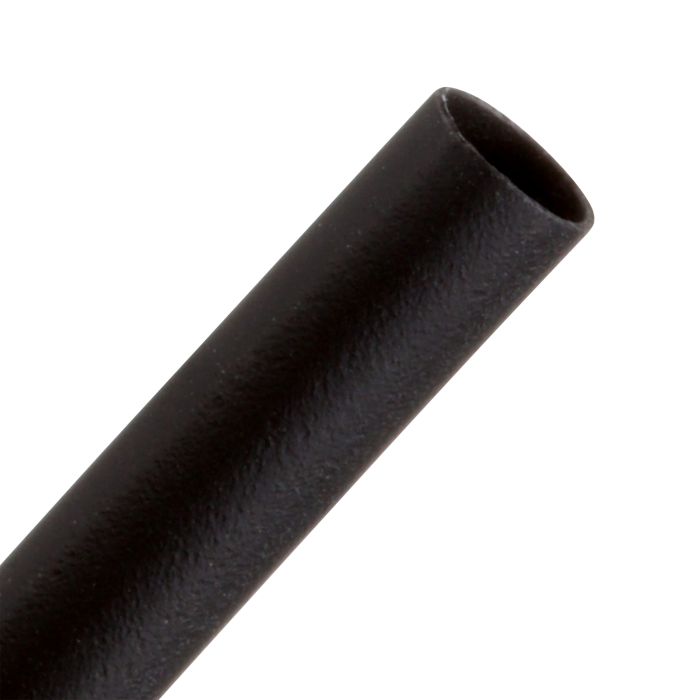

3M FP301-1/8-6-10-10 PC PKS Heat Shrink Tubing 0.125 in ID 6 in (Pack 10)

Product Description

3M FP301-1/8-6"-BLACK-10-10 PC PKS is a thin-wall polyolefin heat shrink tubing with a 2:1 shrink ratio and a supplied inner diameter of 0.125 in. It recovers to 0.062 in with a recovered wall thickness of 0.02 in, provides dielectric insulation rated to 600 V, and each piece is 6 in long in packs of 10. Operating range is -67�F (-55�C) to 275�F (135�C); minimum shrink temperature 212�F (100�C).

• Thin-wall polyolefin tubing, 2:1 shrink ratio; supplied ID 0.125 in, recovered ID 0.062 in, recovered wall thickness 0.02 in; length 6 in
• Electrical and thermal ratings: dielectric strength 600 V; operating temperature -67�F to 275�F (-55�C to 135�C); minimum shrink temperature 212�F (100�C)
• Chemical and mechanical properties: flame retardant, acid/alkali and solvent resistant; suitable for solder joints, terminals, cable splices, wire harnessing, strain relief and wire bundling

Product Highlights

Thin-wall polyolefin heat shrink tubing, 2:1 ratio, 0.125 in to 0.062 in recovery, 6 in pieces, pack of 10, 600 V dielectric

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: FP301-1/8-6"-BLACK-10-10 PC PKS
• Country of Origin: United States

Technical Specifications

• Brand: 3M
• Manufacturer Part Number: FP301-1/8-6"-BLACK-10-10 PC PKS
• Series: FP-301
• Material: Polyolefin
• Tubing Type: Single-wall thin-wall heat shrink tubing
• Shrink Ratio: 2:1
• Inner Diameter Before Shrink: 0.125 in (3.18 mm)
• Inner Diameter After Shrink: 0.062 in (1.57 mm)
• Recovered Wall Thickness: 0.020 in (0.51 mm)
• Length: 6 in (152.4 mm)
• Use With Wire Size: 22 AWG to 16 AWG
• Operating Temperature: -67�F to 275�F (-55�C to 135�C)
• Minimum Shrink Temperature: 212�F (100�C)
• Dielectric Strength: 600 V
• Flame Retardant: Yes
• Adhesive Lined: No
• Tubing Properties: Acid and alkali resistant; solvent resistant; moisture-seal protection
• Certifications: UL File E-39100; CSA certified; RoHS 2011/65/EU compliant; SAE AMS-DTL-23053/5 Class 1
• Country of Origin: United States

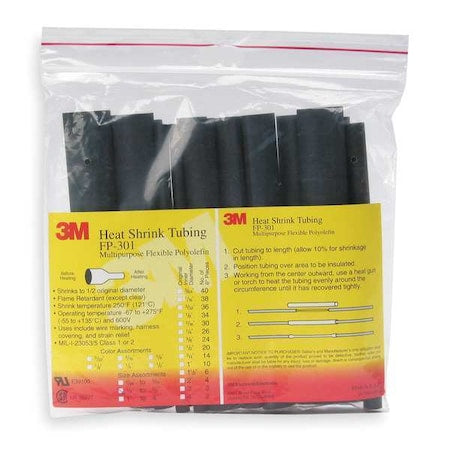

• Package Quantity: 10
• Shelf Life: 120 Months
