3M FP301-1/8-48-25-PCS Thin-wall heat shrink tubing 48 in (25 pack) MMMFP30118

Product Description

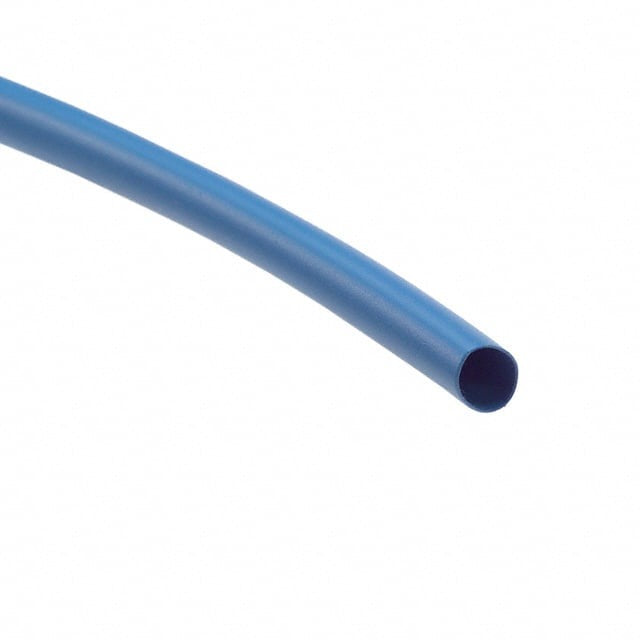

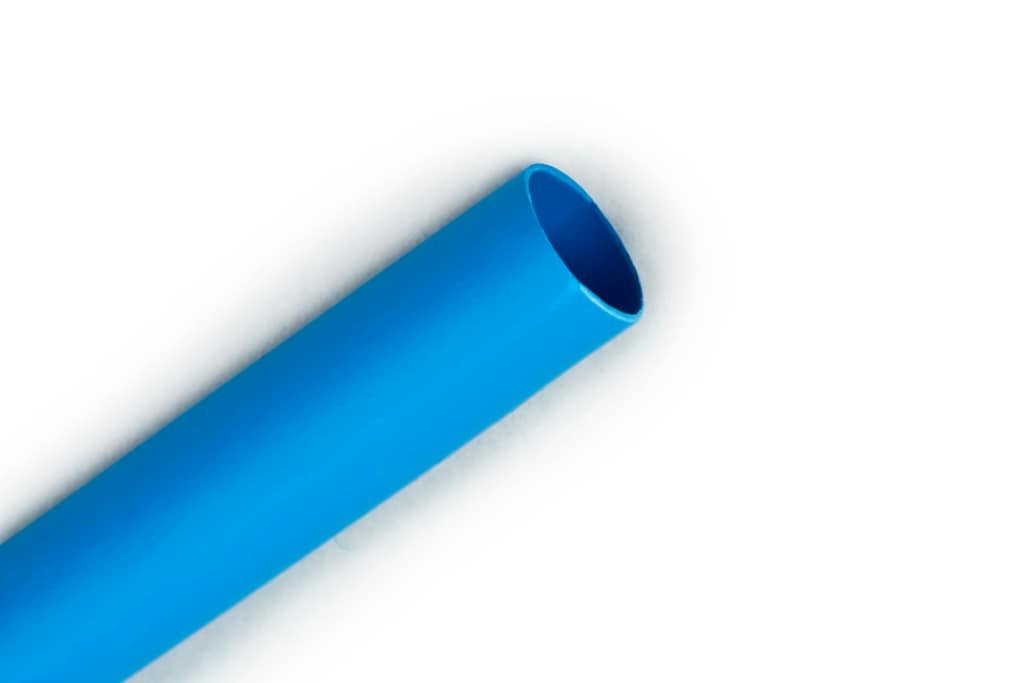

3M FP301-1/8-48-BLUE-25-PCS is 1/8 inch thin-wall polyolefin heat shrink tubing with a 2:1 shrink ratio and 48 inch length per piece. The tubing recovers from 0.125 in to 0.062 in inner diameter with a recovered wall thickness of 0.020 in, dielectric strength rated at 900 V, and a shrink temperature of 100 C. It is UL recognized and CSA certified, and is suitable for electrical insulation, wire bundling, and abrasion protection.

• 2:1 shrink ratio; nominal supplied ID 0.125 in (3.18 mm) recovers to 0.062 in (1.57 mm); length 48 in (1.22 m)
• Thin-wall polyolefin construction with recovered wall thickness 0.020 in (0.51 mm); dielectric strength 900 V
• Rated operating temperature range -55 C to 135 C; features flame retardant, solvent resistant, and split resistant properties

Product Highlights

Thin-wall polyolefin heat shrink tubing, 2:1 shrink ratio, 48 in length, 25 pieces per pack, UL recognized and CSA certified

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: FP301-1/8-48-BLUE-25-PCS
