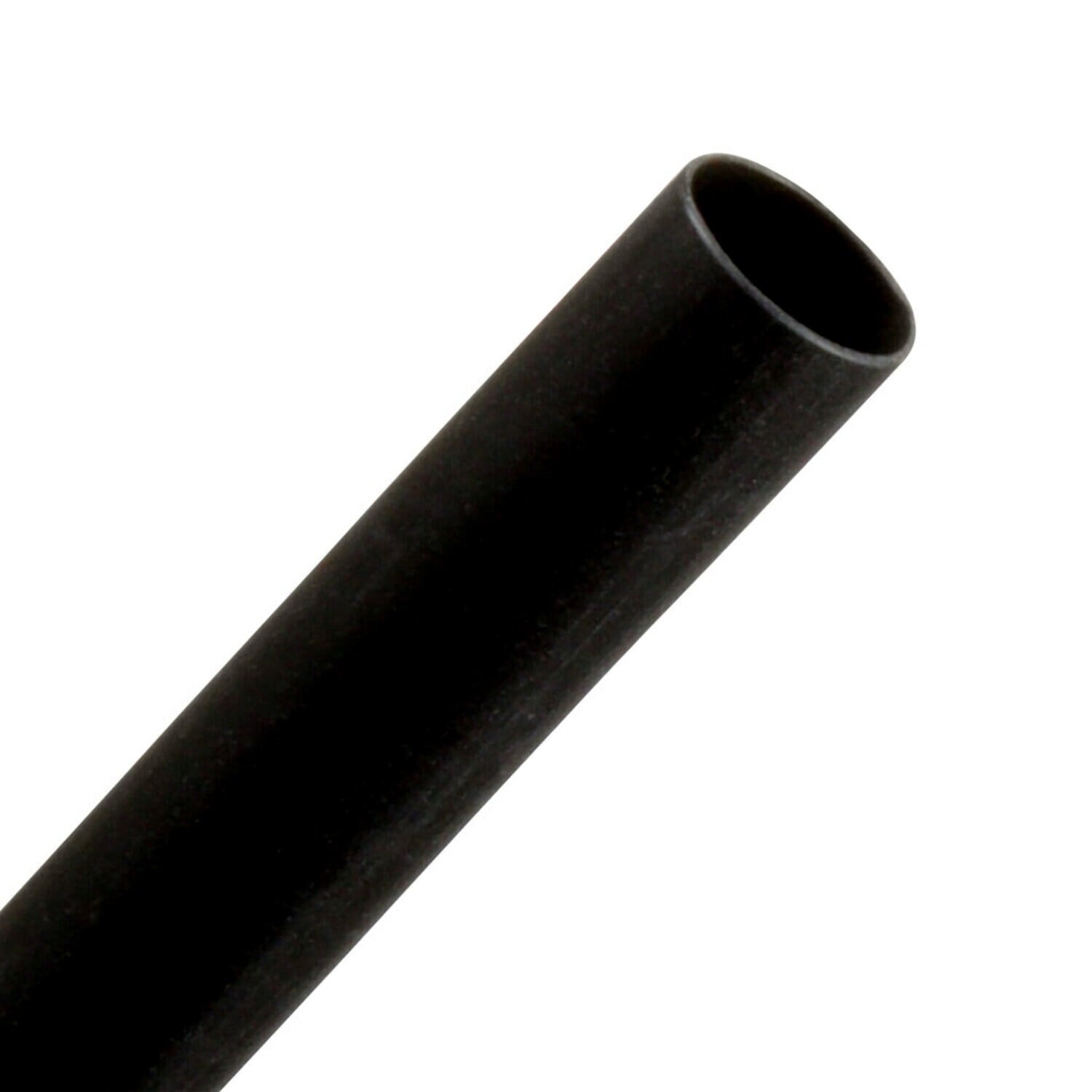

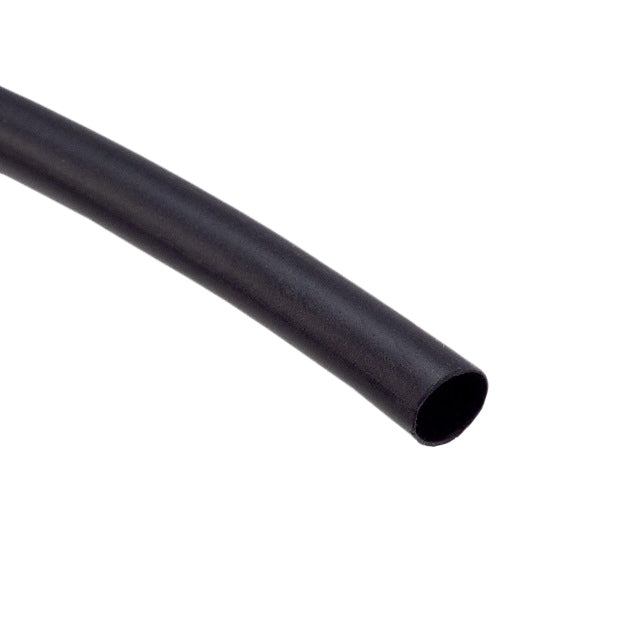

3M FP301-1/4-6 inches Heat Shrink Tubing 1/4 in 6 in (10 Pack)

Product Description

3M FP301-1/4-6" heat shrink tubing is a thin-wall polyolefin tube with a 2:1 shrink ratio designed for electrical insulation and mechanical protection. It supplies a 0.250 in (6.35 mm) ID and recovers to 0.125 in (3.18 mm) with a recovered wall thickness of 0.025 in (0.64 mm). The 6.00 in length tolerates -55�C to 135�C and has a shrink temperature of 100�C.

• Thin-wall polyolefin construction with 2:1 shrink ratio; supplied ID 0.250 in (6.35 mm), recovered ID 0.125 in (3.18 mm)
• Recovered wall thickness 0.025 in (0.64 mm), length 6.00 in (152.4 mm), shrink temperature 100�C
• Flame retardant and solvent resistant; voltage rating up to 600 V; operating temperature -55�C to 135�C

Product Highlights

General-purpose thin-wall heat shrink tubing for wire insulation, harnessing, splices, and component protection; 2:1 shrink, 6 in length, flame retardant.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: FP301-1/4-6"-BLACK-10-10 PC PKS

Technical Specifications

• Manufacturer: 3M
• Manufacturer Part Number: FP301-1/4-6"-BLACK-10-10 PC PKS
• Series: FP-301
• Material: Polyolefin (PO)
• Shrink Ratio: 2:1
• Supplied Inner Diameter: 0.250 in (6.35 mm)
• Recovered Inner Diameter: 0.125 in (3.18 mm)
• Recovered Wall Thickness: 0.025 in (0.64 mm)
• Length: 6.00 in (152.40 mm)
• Shrink Temperature: 100�C
• Operating Temperature: -55�C to 135�C (67 to 275 �F)
• Storage Temperature: 10�C to 27�C (50�F to 80�F)
• Shelf Life: 120 Months
• Features: Flame retardant; Solvent resistant; Moisture sealing; Split resistant; Markable
• Packaging: Bulk
• Manufacturer Standard Package: 10
• Voltage Rating: Up to 600 V
• Standards/Certifications: UL Listed (File E-39100); SAE AS23053/5 Class 1 (all colors); CSA Certified
• RoHS Status: ROHS3 Compliant
• REACH Status: REACH Unaffected
• ECCN: EAR99
• HTSUS: 3926.90.9989
• Part Status: Active
• MSL: Not Applicable
