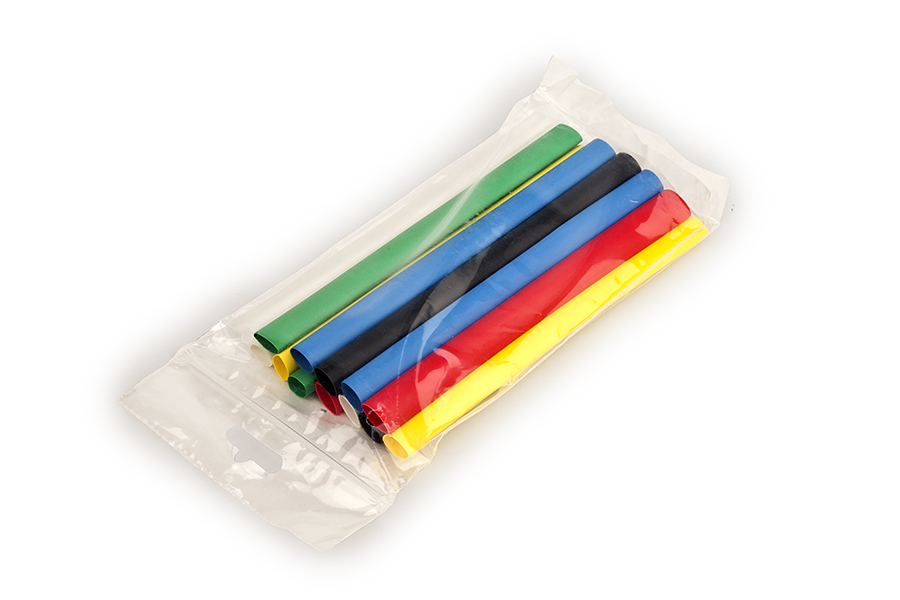

3M FP0.375AS6P 3M Heat Shrink Thin - 6 Inch

Product Description

The 3M FP0.375AS6P heat shrink tubing is designed for various industrial and military applications. This thin-wall tubing features a 2:1 shrink ratio, providing effective electrical insulation rated for up to 600 volts. It is made from flexible polyolefin material, which ensures moisture seal protection, making it suitable for multiple use cases including lightweight wire harness covering and wire bundling.

• Offers shrink-fit protection and strain relief for wires and connections
• Flame-retardant tubing suitable for 600V rated applications
• Withstands temperatures from -67 to 275 degrees Fahrenheit

Product Highlights

This tubing is versatile, balancing electrical, physical, and chemical properties for reliable performance in demanding environments.

Product Information

Standard Information

• Brand: 3M
• Product ID: 776973

Technical Specifications

• Type: Single (Thin) Wall
• Color: Multi Color
• Length: 6 inches
• Material: Polyolefin
• Thickness: 0.025 inches
• Shrink Ratio: 2 to 1
• Inside Diameter: 0.187 inches
• Outside Diameter: 0.375 inches
• Dielectric Strength: 900 V/mil
• Operating Temperature: 135 degrees Celsius
• Max Operating Temperature: 275 degrees Fahrenheit
