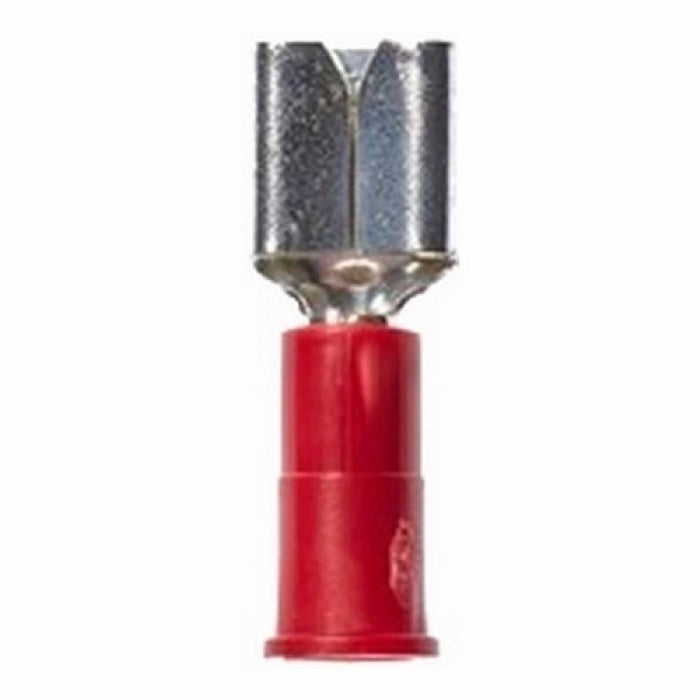

3M FDV18-250Q Insulated Standard Female Disconnect Terminal 22 to 18 AWG Conductor 0.25 in W x 0.032 in THK Tab

Product Description

The 3M Highland FDV18-250Q is an insulated standard female disconnect terminal designed for use with conductors ranging from twenty-two to eighteen American Wire Gauge (AWG). This terminal features a butted seam barrel with a funnel-shaped, polyvinyl chloride sleeve for secure and efficient wire insertion. The terminal is compatible with tabs that are a quarter inch wide, making it suitable for various electrical applications.

• Vinyl insulation offers abrasion resistance.
• Temperature rated from -40 to 221 degrees Fahrenheit.
• Compatible with 600/1000 VAC applications.

Product Highlights

This terminal is constructed from durable brass, ensuring good conductivity and includes corrosion-resistant tin plating. The design incorporates dents and rolled edges that enhance holding force, allowing for quick disconnection when needed.

Product Information

Standard Information

• Manufacturer: 3M
• Material: Vinyl

Technical Specifications

• Conductor Size: 22 to 18 AWG
• Tab Size: 0.25 in W x 0.032 in THK
• Dimensions: 0.87 in L
• Finish: Tin Plated
• Insulation Type: Vinyl Fully Insulated
• Voltage Rating: 600/1000 VAC
• Temperature Rating: -40 to 221 deg F
• Barrel Type: Butted Seam
