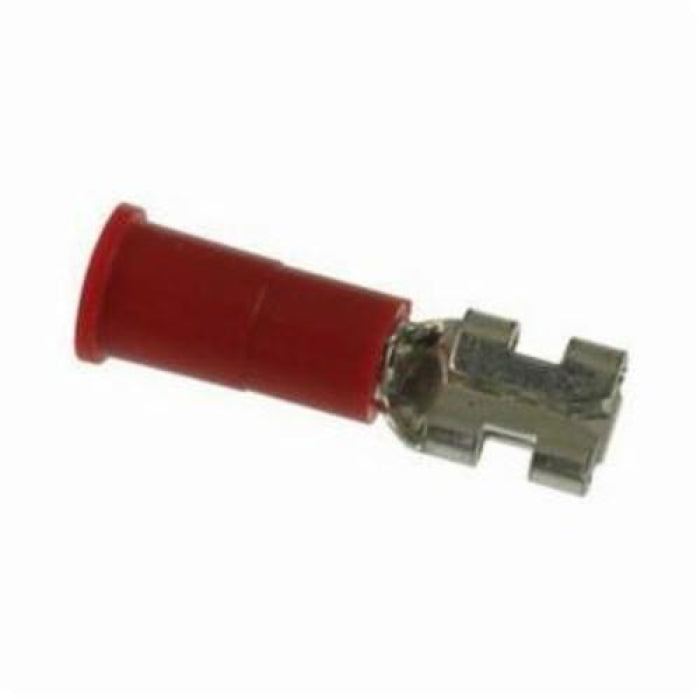

3M FDV18-187Q Female Disconnect Terminal 600 VAC (22 to 18 AWG) 7010350238

Product Description

The 3M FDV18-187Q is a female disconnect terminal designed for use with conductors ranging from twenty-two to eighteen AWG. This terminal features a tab size of zero point zero two by zero point one eight seven inches and is suitable for a voltage rating of six hundred VAC. The terminal is made of brass and includes an insulated design.

• Insulated standard female disconnect terminal
• Compatible with 22 to 18 AWG conductors
• Suitable for voltage up to 600 VAC

Product Highlights

This terminal provides reliable connections in electrical applications. The funnel entry design makes wire insertion straightforward.

Product Information

Standard Information

• Brand: 3M
• MPN: FDV18-187Q

Technical Specifications

• Type: Insulated Standard
• Color: Red
• Material: Brass
• Insulation Type: Vinyl Fully Insulated
• Tab Size: 0.02 x 0.187 inches
• Maximum Conductor Size: 18 AWG
• Minimum Conductor Size: 22 AWG
• Temperature Rating: -40 to 221 degrees Fahrenheit
• Voltage Rating: 600 VAC
• Standard Package: 25 per bag
