Product Description

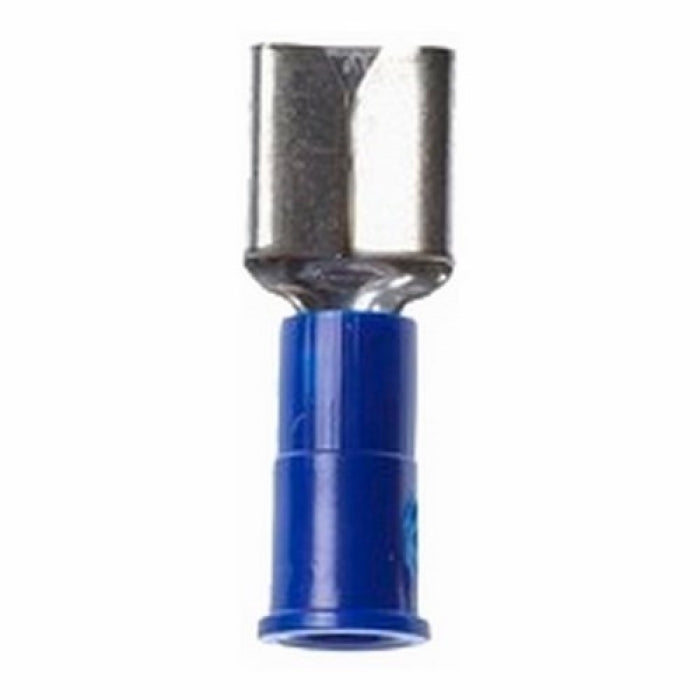

The 3M Highland FDV14-250Q is an insulated standard female disconnect terminal designed for conductor sizes ranging from sixteen to fourteen AWG. It features a width of one-quarter inch and a thickness of zero point thirty-two inches. The terminal has a butted seam barrel and is covered by a rigid molded polyvinyl chloride sleeve, which guides the wire and provides stress relief.
- Insulated terminal for secure electrical connections
- Temperature range of minus forty to two hundred twenty-one degrees Fahrenheit
- Compatible with male tabs of one-quarter inch width
Product Highlights
This female disconnect terminal is ideal for applications requiring quick and reliable connections. It provides a strong hold with its butted seam design and is simple to install.
Product Information
Standard Information
-
Brand: 3M
-
MPN: FDV14-250Q
Technical Specifications
-
Barrel Type: Butted Seam
-
Color: Blue
-
Conductor Size: 16 to 14 AWG
-
Dimensions: 0.87 in L
-
Finish: Tin Plated
-
Material: Vinyl
-
Specifications: 0.145 in Dia Max Insulation, 0.08 in ID x 0.25 in L Barrel
-
Tab Size: 0.25 in W x 0.032 in THK
-
Temperature Rating: -40 to 221 deg F
-
Terminal Type: Crimp
-
Type: Insulated Standard
-
Voltage Rating: 600/1000 VAC
