Product Description

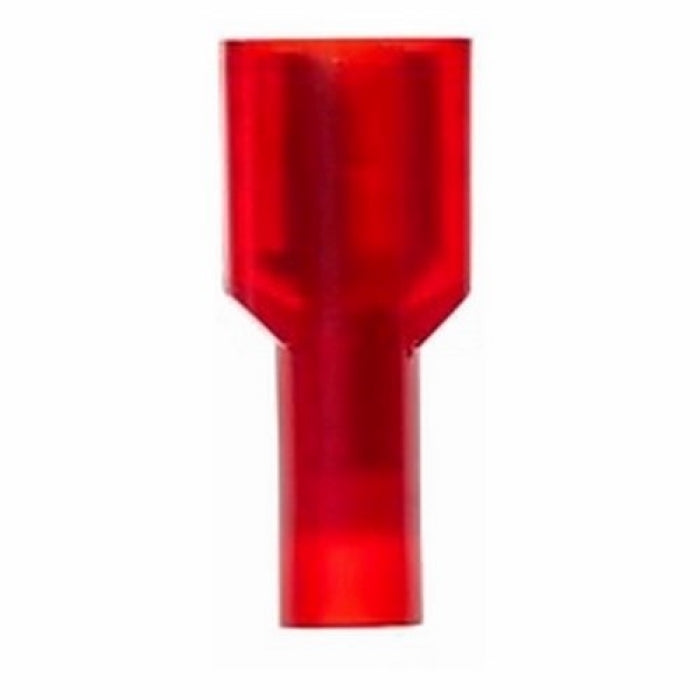

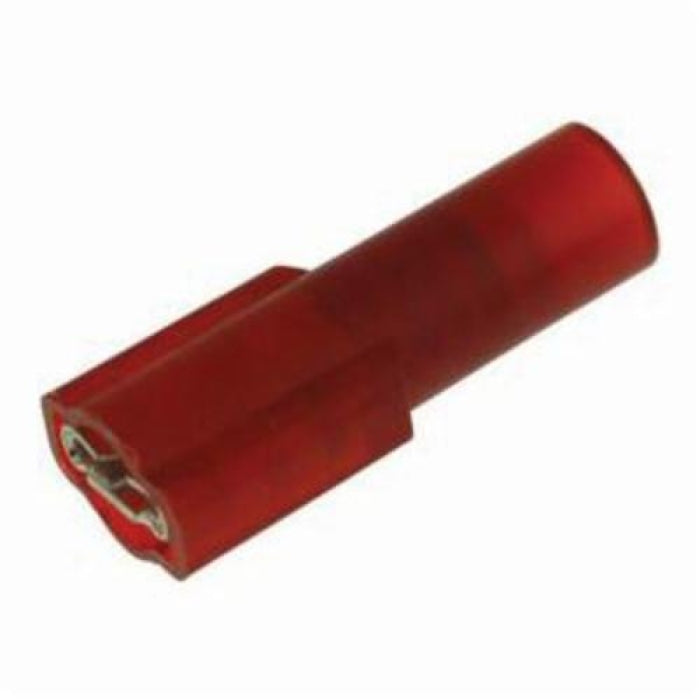

The 3M FDI18-250Q is a fully insulated female disconnect terminal designed for conductors sized 22 to 18 AWG. This terminal features a tab measurement of zero point zero thirty-two inches by zero point twenty-five inches, making it suitable for a variety of electrical applications. Featuring a robust brass construction, it ensures good conductivity and is tin-plated for corrosion resistance.
- Temperature rated from -40 to 221 degrees Fahrenheit.
- Compatible with standard male tabs of a quarter-inch width.
- Meets voltage rating of six hundred volts for building wire.
Product Highlights
The 3M FDI18-250Q terminal allows for quick and safe disconnection of wires while maintaining strong holding force due to its rolled edges and dents.
Product Information
Standard Information
-
Type: Fully Insulated
-
Color: Red
Technical Specifications
-
Material: Brass
-
Tab Size: 0.032 x 0.25 inches
-
Voltage Rating: 600 VAC
-
Approval: UL 310, CSA C22.2
-
Insulation Type: Nylon Fully Insulated
-
Conductor Size: 22 to 18 AWG
-
Specifications: 0.87 inches OAL
-
Temperature Rating: -40 to 221 degrees Fahrenheit
