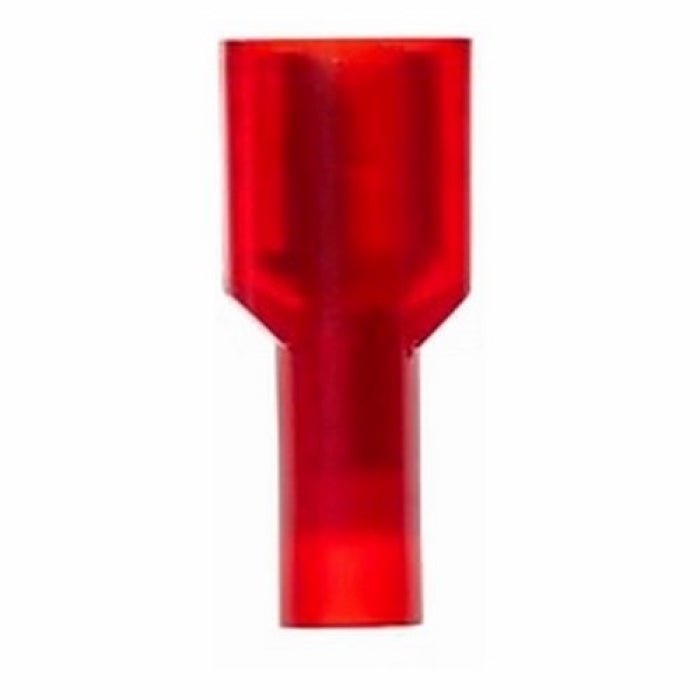

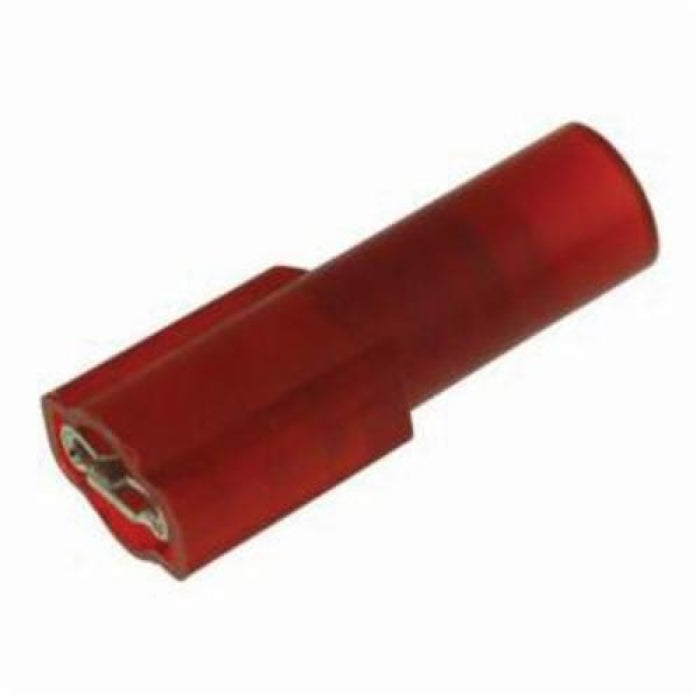

3M FDI18-250Q Female Disconnect Terminal 600 VAC 22 to 18 AWG 0.032 x 0.25 in Tab

Product Description

The 3M FDI18-250Q is a female disconnect terminal designed for use with 22 to 18 AWG conductors. It features a fully insulated barrel, making it suitable for various applications in electrical wiring. The terminal has a tab size of 0.032 x 0.25 inches and is rated for voltages up to 600 VAC, providing a reliable connection in electrical systems.

• Fully insulated for safety and durability
• Compatible with 22 to 18 AWG conductors
• Rated for 600 VAC

Product Highlights

This terminal provides excellent holding force thanks to its innovative design. The robust brass material ensures good conductivity and the corrosion-resistant tin plating enhances its longevity.

Product Information

Standard Information

• Manufacturer: 3M
• Tab Size: 0.032 x 0.25 in

Technical Specifications

• Color: Red
• Conductor Size: 22 to 18 AWG
• Material: Brass
• Voltage Rating: 600 VAC
• Temperature Rating: -40 to 221 deg F
• Insulation Type: Nylon Fully Insulated
• Overall Length: 0.87 in
• Finish: TiN Plated
