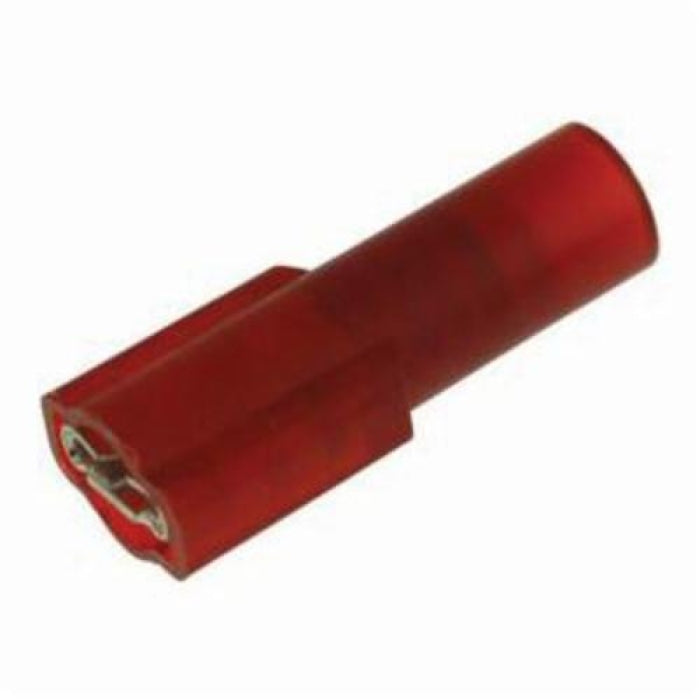

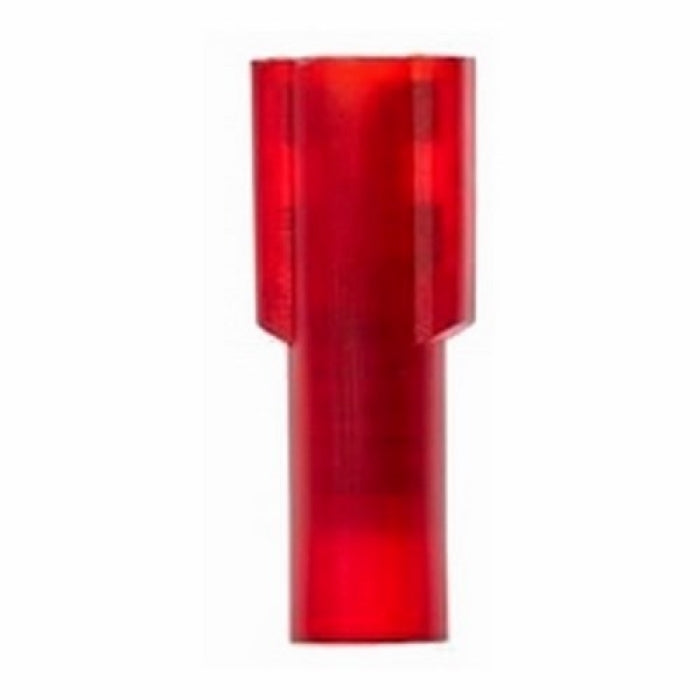

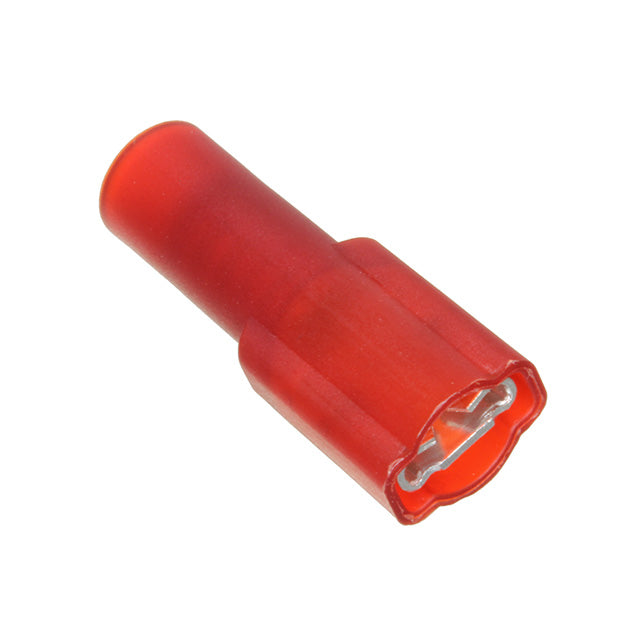

3M FDI18-187Q female disconnect terminal fully insulated 22-18 AWG (0.187 in tab / 25 per bag)

Product Description

3M FDI18-187Q is a fully insulated female disconnect terminal designed for 22 to 18 AWG conductors. The tin-plated brass contact mates with a 0.187 in wide male tab and provides a 600 VAC rating; the nylon butted-seam barrel facilitates wire insertion and retention. The terminal measures approximately 0.81 in overall length and is rated for -40 to 221 degrees F, suitable for quick-disconnect electrical connections.

• Fully insulated nylon, butted-seam barrel with dents and rolled edges for wire retention
• Tin-plated brass contact, mates with 0.187 in (4.75 mm) male tab; crimp termination
• Wire range 22�18 AWG, voltage rating 600 VAC, temperature rating -40 to 221 �F (-40 to 105 �C)

Product Highlights

Fully insulated nylon female quick-disconnect for 22�18 AWG with 0.187 in tab, tin-plated brass contact, 600 VAC rating, 0.81 in overall length.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: FDI18-187Q
• Country of Origin: United States

Technical Specifications

• Brand: 3M
• Manufacturer Part Number: FDI18-187Q
• Product Type: Female disconnect terminal
• Wire Gauge: 22 to 18 AWG
• Tab Size: 0.020 x 0.187 in (0.51 x 4.75 mm)
• Tab Width: 0.187 in (4.75 mm)
• Tab Thickness: 0.020 in (0.51 mm)
• Contact Material: Brass (tin-plated contact finish)
• Contact Finish: Tin plated
• Insulation Material: Nylon
• Insulation Type: Fully insulated
• Barrel Seam: Butted seam
• Termination: Crimp
• Voltage Rating: 600 VAC
• Temperature Rating: -40 to 221 �F (-40 to 105 �C)
• Overall Length: 0.81 in (20.57 mm)
• Insulation Diameter: 0.145 in (3.68 mm)
• Mounting Type: Free-hanging (in-line)
• Series: Highland
• Gender: Female
• Packaging: 25 per bag
• Standards: CSA Certified; UL Listed; RoHS Compliant
• Country of Origin: United States
• ECCN: EAR99
• UNSPSC: 39121432
