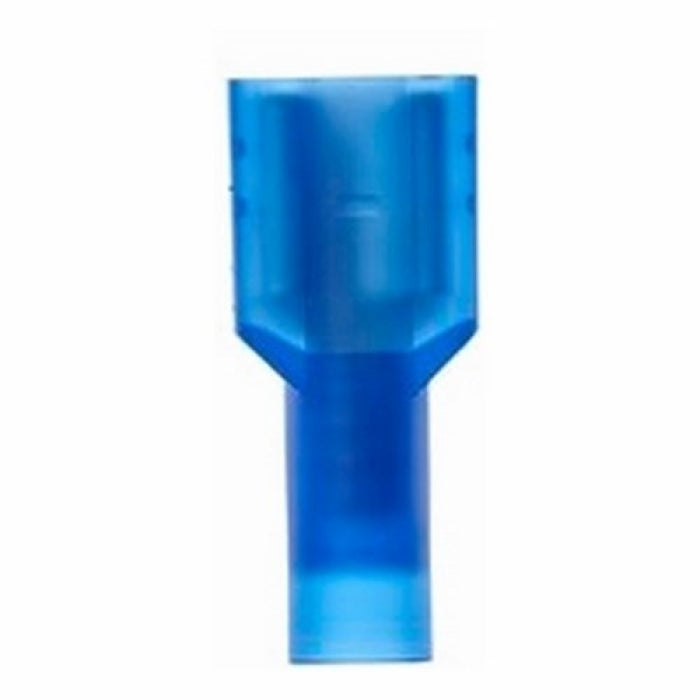

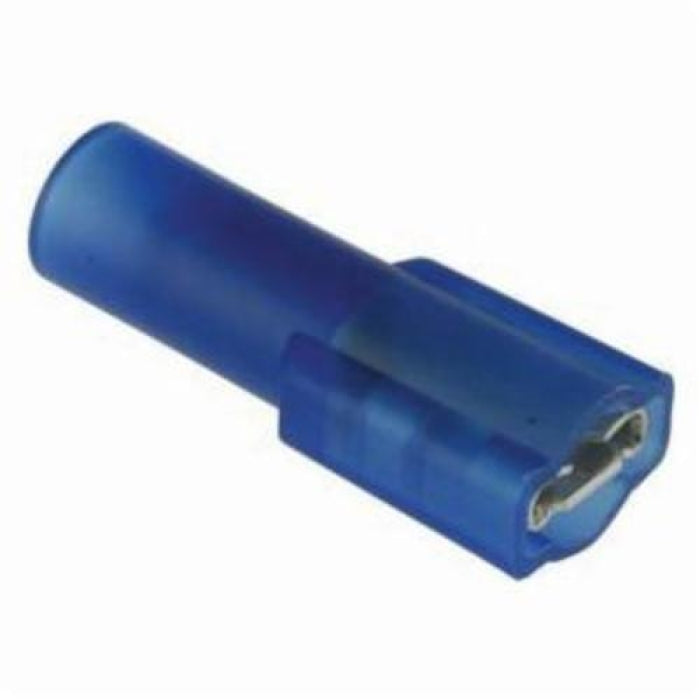

3M FDI14-250Q Fully Insulated Female Disconnect Terminal 16 to 14 AWG 0.032 x 0.25 in Tab

Product Description

3M FDI14-250Q is a fully insulated female disconnect terminal designed for use with conductors sized sixteen to fourteen AWG. This terminal features a tab size of zero point zero thirty-two inches by zero point twenty-five inches and can handle a voltage rating of six hundred VAC. It is suitable for various applications within electrical wiring systems.

• Designed for conductor sizes of 16 to 14 AWG
• Constructed from brass with a tin-plated finish
• Rated for a maximum voltage of 600 VAC

Product Highlights

This terminal ensures a reliable connection with its butted seam barrel while allowing for easy insertion of wires. The design includes dents and rolled edges for enhanced holding force, making it ideal for quick disconnects in electrical installations.

Product Information

Standard Information

• Manufacturer: 3M
• Part Number: FDI14-250Q

Technical Specifications

• Color: Blue
• Conductor Size: 16 to 14 AWG
• Finish: TiN Plated
• Insulated: Yes
• Material: Brass
• Specifications: 0.87 inches OAL
• Tab Size: 0.032 x 0.25 inches
• Temperature Rating: -40 to 221 degrees Fahrenheit
• Type: Fully Insulated
• Voltage Rating: 600 VAC
