Product Description

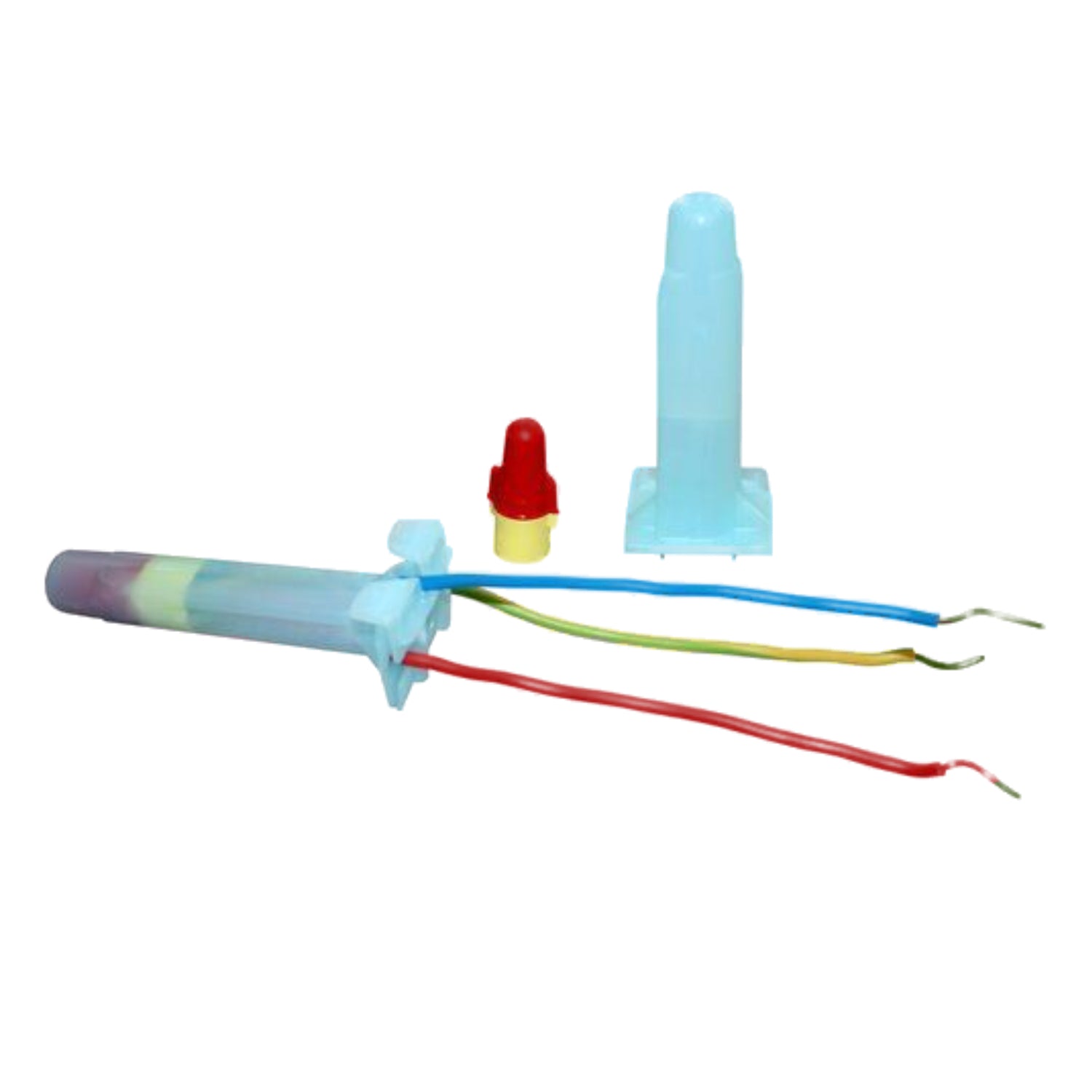

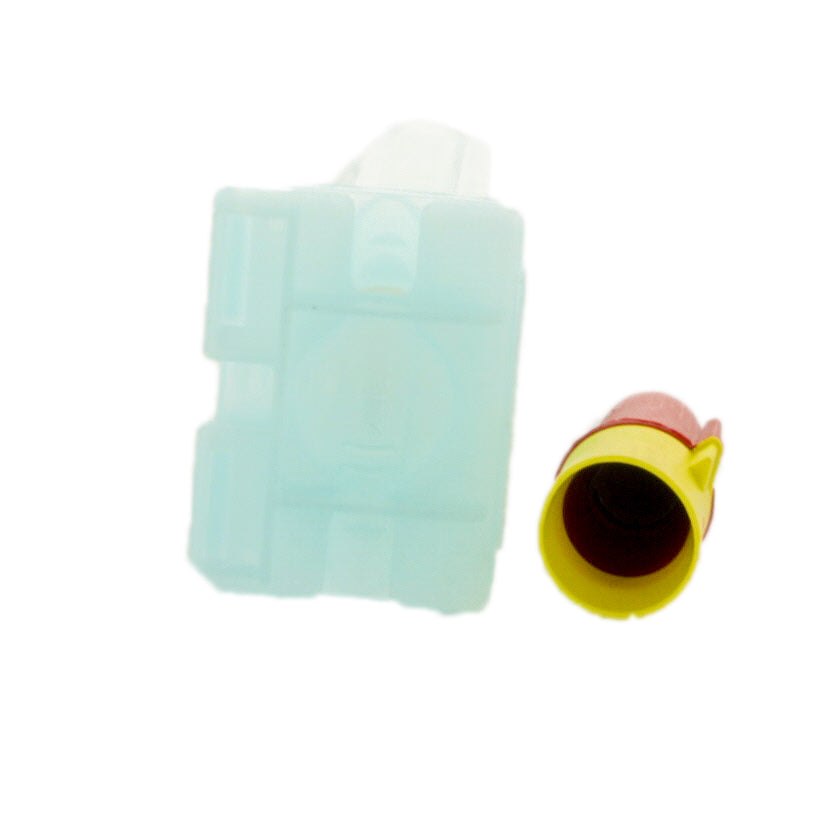

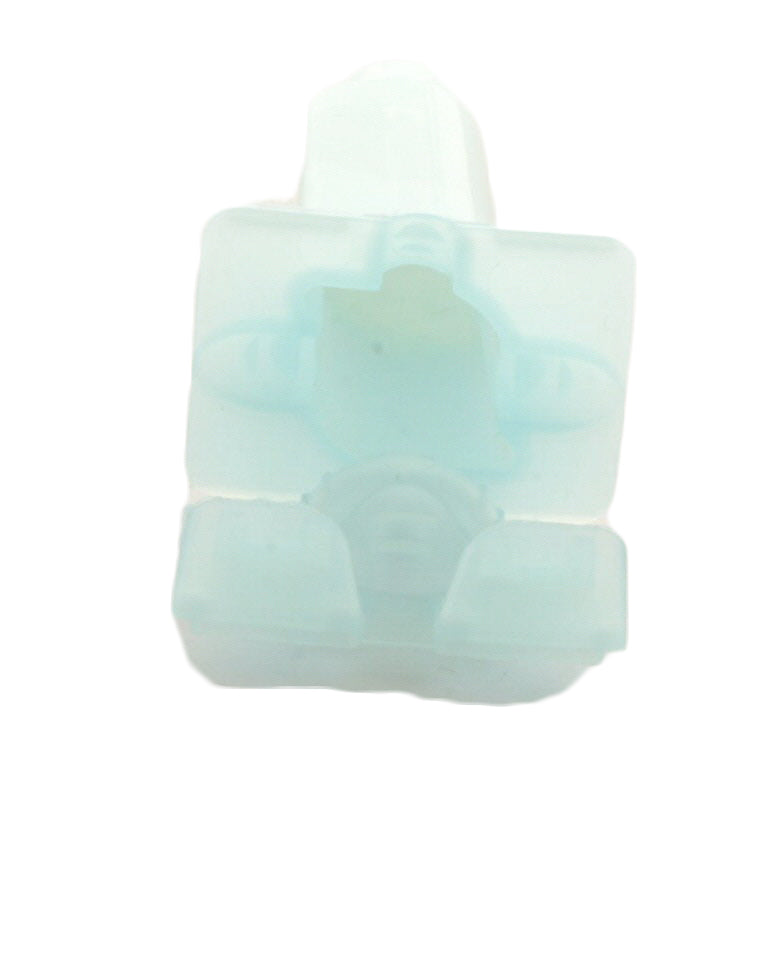

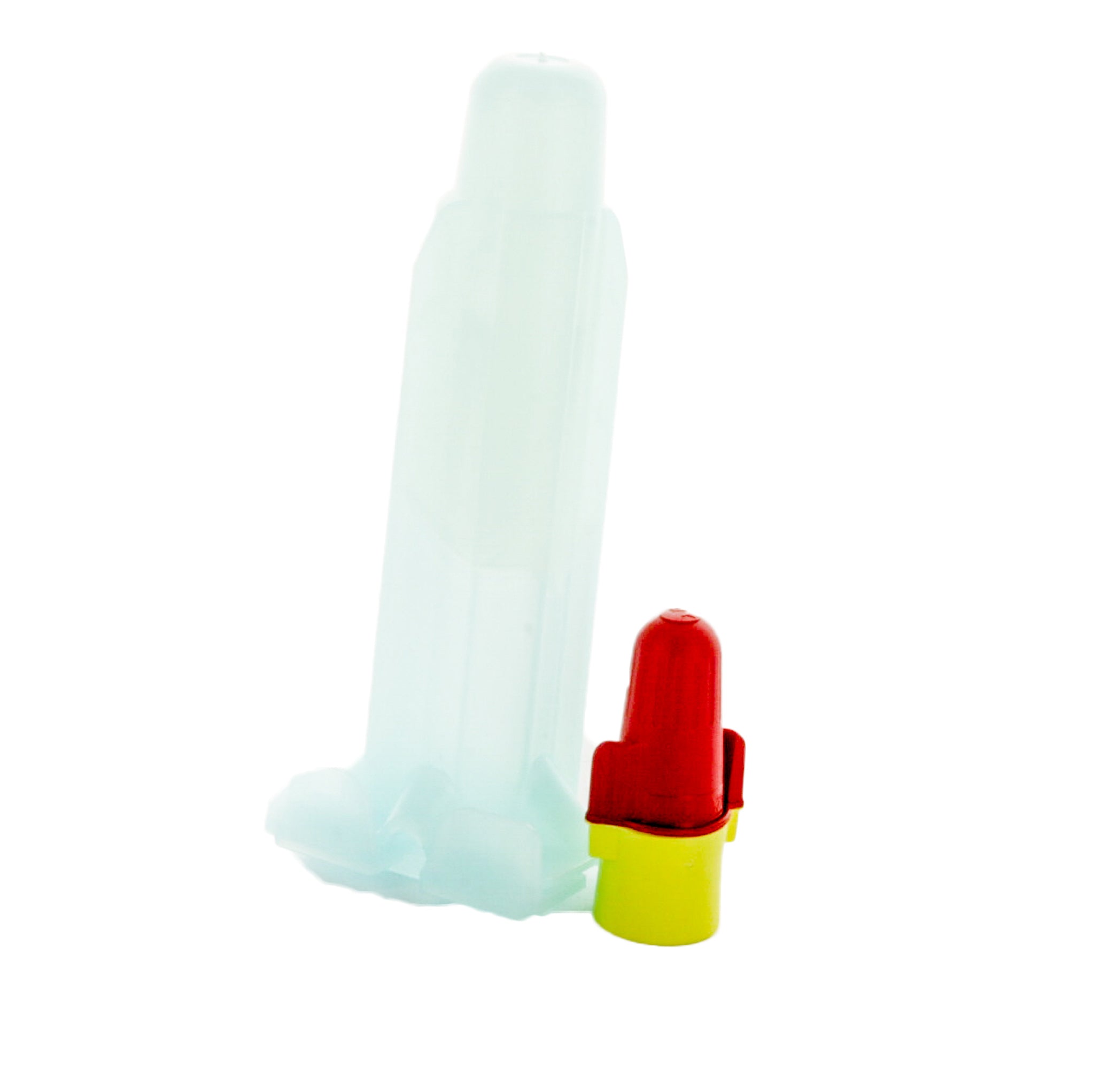

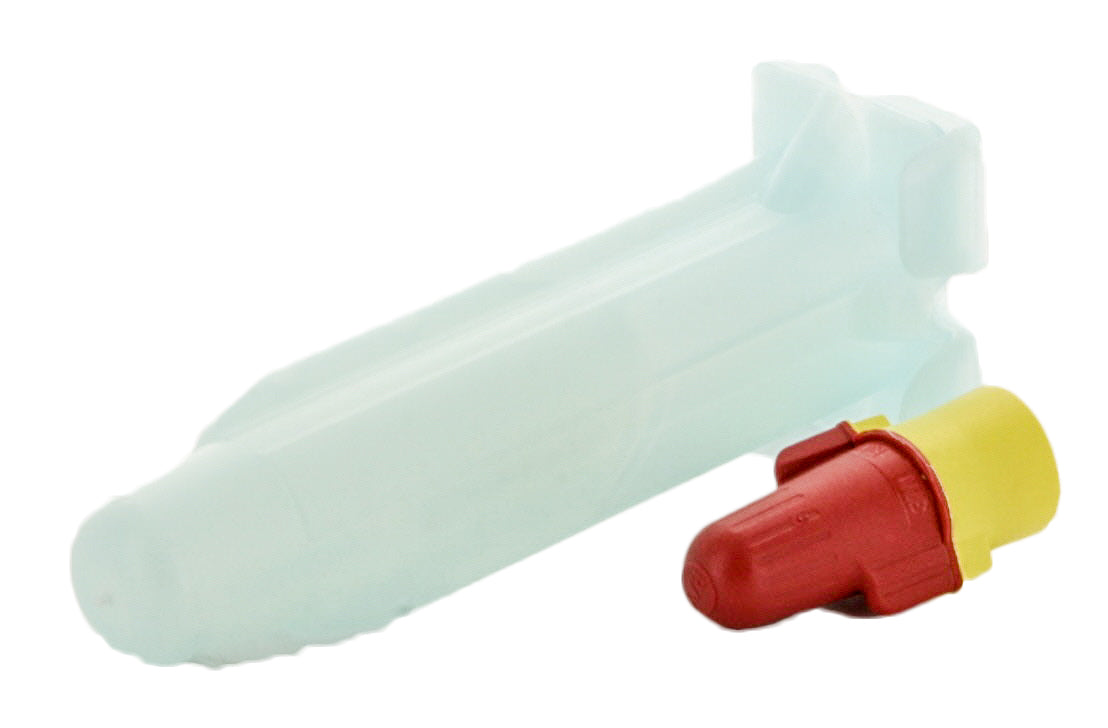

The 3M DBR/Y-6 Direct Bury Splice Kits provide a reliable connection using a 3M Performance Plus Wire Connector with a high impact, UV resistant tube prefilled with moisture resistant grease. This premium splice is designed to connect and moisture seal an electrical connection for direct bury applications, rated up to 600V. It is commonly used in golf course irrigation, landscape lighting, and direct bury applications.
- Twist-on type for quick connection
- Used for appliances and fixtures, automotive and marine, commercial construction, industrial construction and residential construction
- Delivers uniform holding power
Product Highlights
The kit splices and effectively moisture-seals, making it ideal for underground electrical wire connections in damp environments.
Product Information
Standard Information
-
Brand: 3M
-
Manufacturer Part Number: DBR/Y-6
-
Country of Origin: USA
Technical Specifications
-
Application Temperature Range (Celsius): 0 - 49 Degrees Celsius
-
Application Temperature Range (Fahrenheit): 32 - 120 Degrees Fahrenheit
-
Brands: 3M
-
Closure Length (Imperial): 3.66 in
-
Closure Length (Metric): 93 mm
-
Closure Width (Imperial): 1 in
-
Closure Width (Metric): 2.54 cm
-
Conductor Sizes (Imperial): 18 - 10 AWG
-
Connection Type: Wire
-
Connector Style: Direct Bury
-
Encapsulation Method: Moisture sealed spring connector
-
Flame Retardant: UL-94 V-2
-
Grease Filling Against Corrosion: Yes
-
Insulation Material: Tube is UV Resistant Polypropylene
-
Maximum Conductor Size (Imperial): 10 AWG
-
Maximum Conductor Size (Metric): 6 mm²
-
Maximum Insulation Outer Diameter (Metric): 3.7 mm
-
Maximum Insulation Outside Diameter: 0.145 in
-
Maximum Operating Temperature (Celsius): 105 ℃
-
Maximum Operating Temperature (Fahrenheit): 221 ℉
-
Maximum Voltage Rating: 600 V
-
Minimum Conductor Size (Imperial): 18 AWG
-
Minimum Conductor Size (Metric): 1 mm²
-
Minimum Operating Temperature (Celsius): -40 ℃
-
Minimum Operating Temperature (Fahrenheit): -40 ℉
-
Operating Temperature (Celsius): -40 °C to 105 °C
-
Operating Temperature (Fahrenheit): -40 °F to 221 °F
-
Operating Temperature Range (Celsius): -40 °C to 105 °C
-
Operating Temperature Range (Fahrenheit): -40 °F to 221 °F
-
Product Type: Connector
-
Wire Connector: R/Y+
-
Wire Connector Type: Direct Bury Splice Kit
-
Type: Gel Filled (waterproof)
-
Use: Irrigation or Landscape Lighting
-
Size: Fits up to 3 x #12AWG
-
UL Listed: for 600 volts in direct bury applications
-
Number of Items: 1
-
Unit Count: 1.0 Count
-
Manufacturer: 3M
-
UPC: 051141341521
-
Part Number: DBR/Y-6
-
Item model number: DBR/Y-6
-
Item Package Quantity: 1
-
Number Of Pieces: 1
-
Batteries Included?: No
-
Batteries Required?: No
-
ASIN: B009SJQHEC
