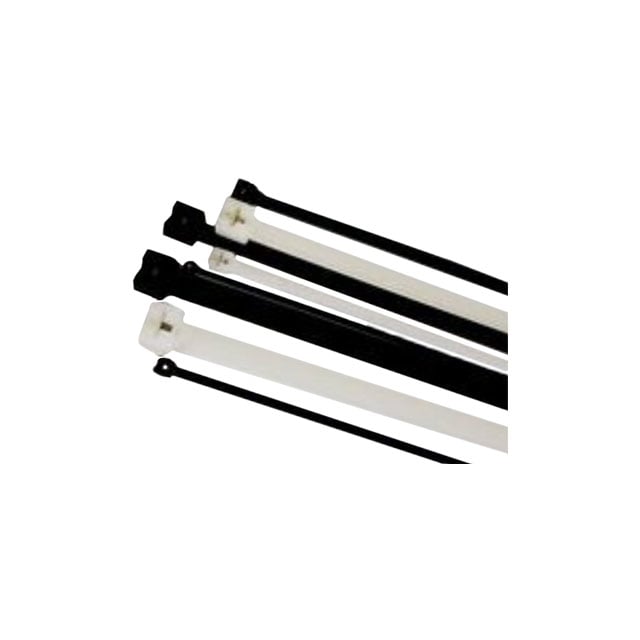

3M CTSB8BK50-C Steel Barb Cable Tie 50 lb (8 Inch / 100 per Bag)

Product Description

3M CTSB8BK50-C is a steel barb cable tie used for secure cable bundling; the stainless-steel barb engages into the strap to lock at any point. The tie is molded from nylon 6/6 with a ribbed strap to resist slippage in high-vibration environments. It has an 8 inch nominal length and a 50 lb tensile strength and is supplied 100 per bag for industrial and plenum applications.

• Stainless steel 304 barb that locks at any point along the nylon 6/6 strap
• Nominal length 8 in, width 0.19 in, maximum bundle diameter 1.77 in, tensile strength 50 lb
• UL listed 62275 Type 21/21S and Plenum rated AH-2; UV and weather resistant

Product Highlights

8 in nylon 6/6 strap with stainless-steel barb; 50 lb tensile; 100 per bag; UL 62275 Type 21/21S and AH-2 plenum rated.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: CTSB8BK50-C
• Country of Origin: China

Technical Specifications

• Manufacturer: 3M
• Brand: 3M
• MPN: CTSB8BK50-C
• Part Number: CTSB8BK50-C
• Cable Tie Type: Steel barb (barb lock)
• Cable Tie Material: Nylon 6/6 (Polyamide 6.6), UV and weather resistant
• Barb Material: Stainless Steel 304
• Nominal Length: 8 in
• Width: 0.19 in (4.83 mm)
• Bundle Diameter Max: 1.77 in (45 mm)
• Tensile Strength: 50 lb
• Operating Temperature Range: -40�C to 85�C
• Standards / Certifications: UL Listed 62275 Type 21/21S; Plenum Rated AH-2
• RoHS Compliant: Yes
• Country of Origin: China
• Pack Quantity: 100 per bag
• Packaging: Bag
