3M CT36NT175-L Standard Cable Tie 36 in x 0.34 in

Product Description

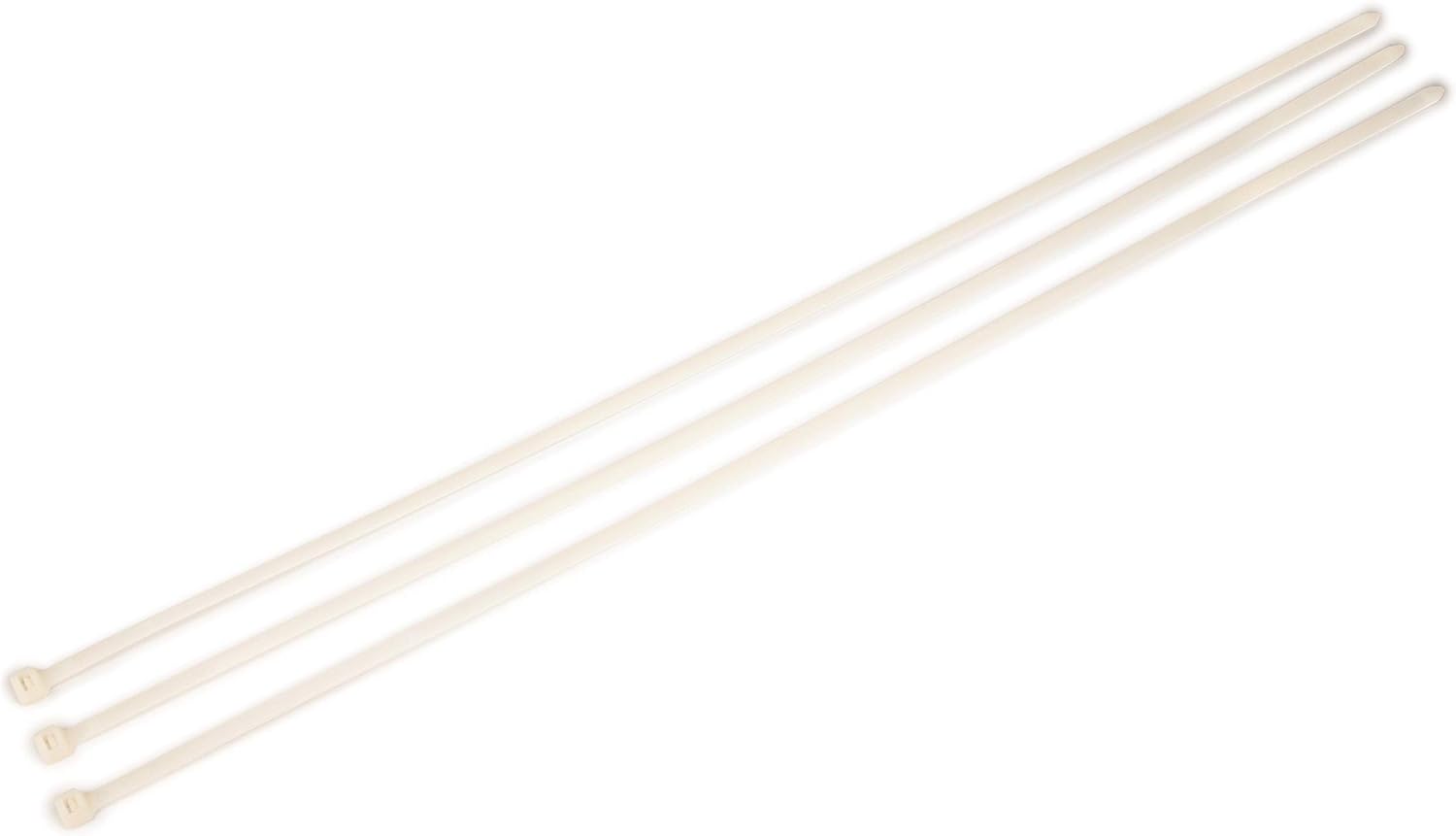

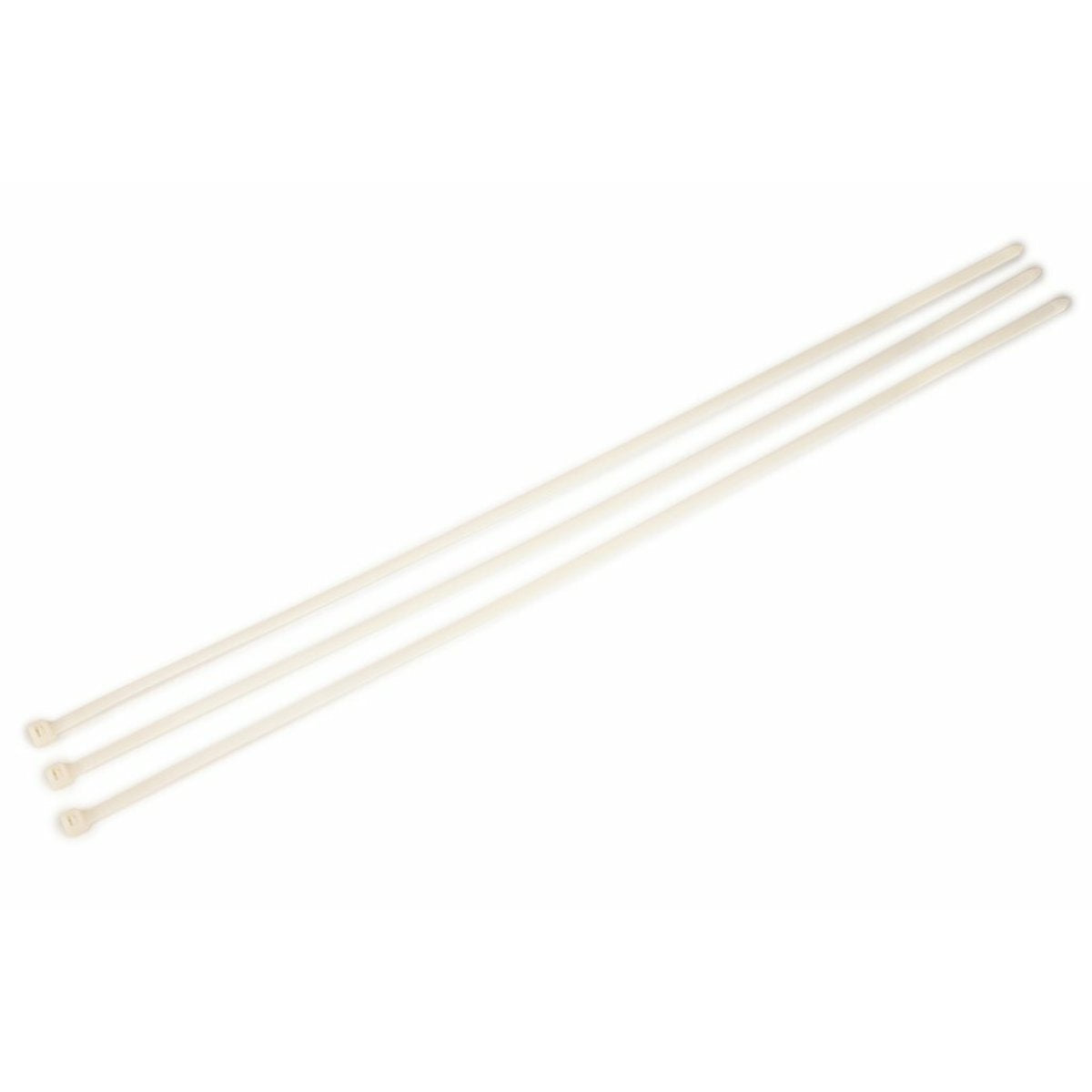

The 3M CT36NT175-L is a 36-inch Nylon 6/6 standard cable tie designed to secure wire bundles and harness components with a 175 lb tensile strength. It features a self-locking head and a curved tip for faster threading, supports bundle diameters up to 11 inches, and is plenum rated (AH-2) with UL 62275 Type 21/21S listing. Operating range is 32 to 185°F (0 to 85°C).

• 36 in length, 0.34 in width, 175 lb tensile strength; supports up to 11 in bundle diameter
• Made from Nylon 6/6 with self-locking head and curved tip for faster installation
• UL 62275 Type 21/21S listed and plenum rated AH-2; operating temperature 32 to 185°F (0 to 85°C)

Product Highlights

36 in Nylon 6/6 cable tie, 175 lb tensile strength, self-locking head, plenum rated, UL listed

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: CT36NT175-L
• Country of Origin: United States

Technical Specifications

• Brand: 3M
• Manufacturer Part Number: CT36NT175-L
• Length: 36 in
• Width: 0.34 in
• Thickness: 0.087 in
• Material: Nylon 6/6
• Tensile Strength: 175 lb
• Maximum Bundle Diameter: 11 in
• Lock Mechanism: Self-locking
• Tip Style: Curved tip for faster threading
• Operating Temperature Range: 32 to 185 °F (0 to 85 °C)
• UL Listing: UL 62275 Type 21 / 21S
• Plenum Rating: AH-2 (plenum rated)
• Flammability Rating: UL 94 V-2
• Halogen Free: Yes
• Country of Origin: United States
• Units per Bag: 50
• Units per Case: 500
• ASIN: B007UUNPRS
• GTIN: 00051128593219
