Product Description

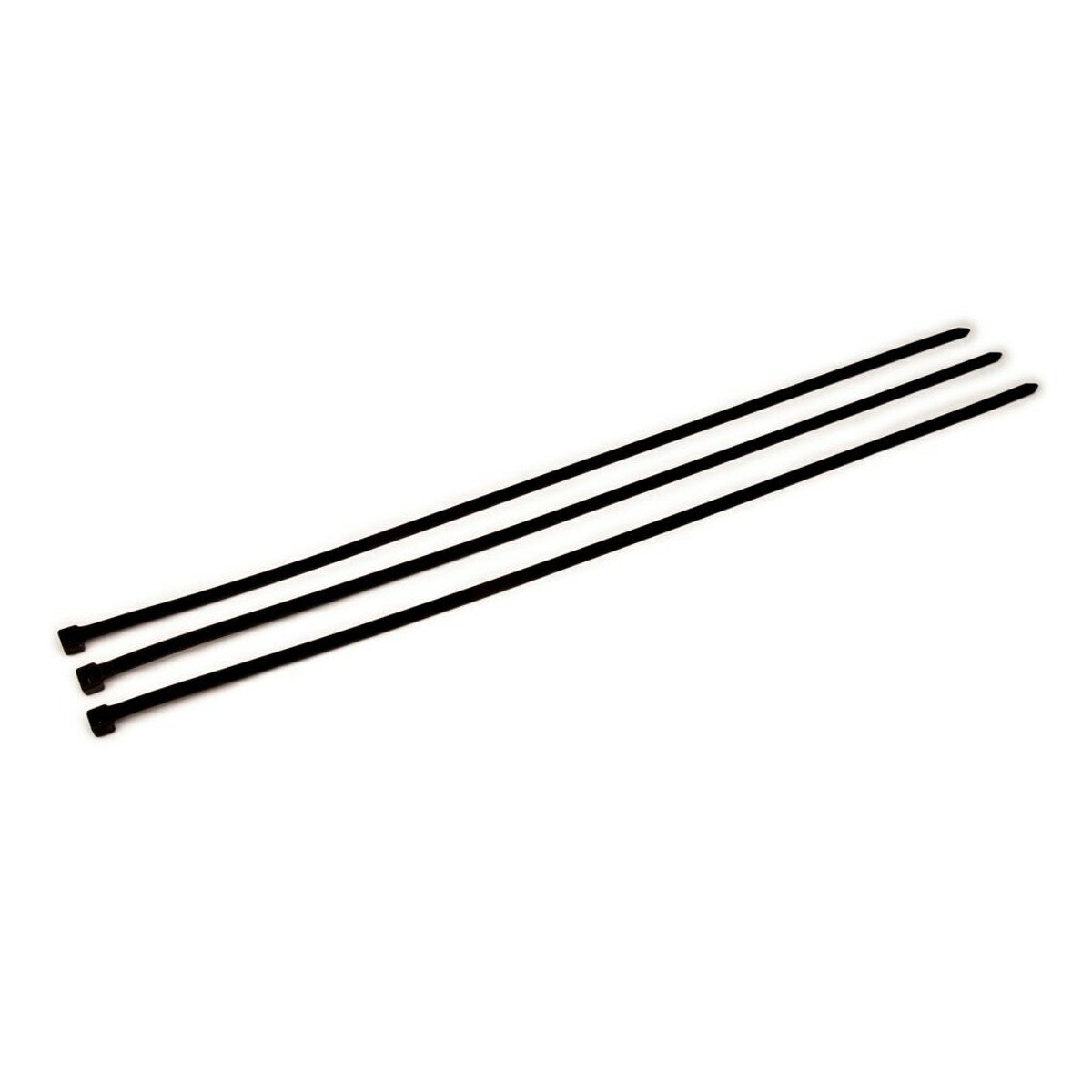

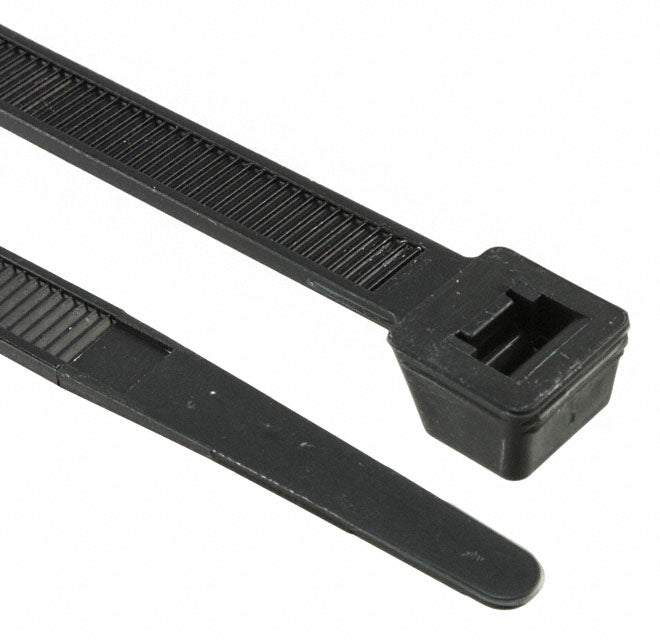

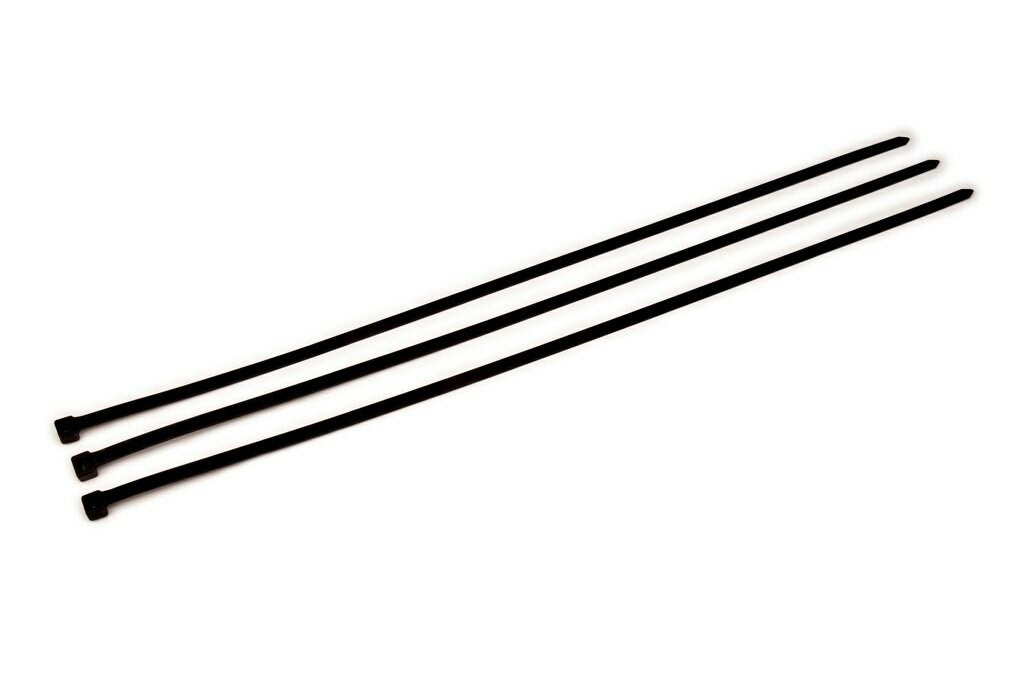

The 3M CT36BK175-L is a heavy-duty 36-inch nylon cable tie (MPN CT36BK175-L) designed for securing wire bundles and harness components with a 175 lb tensile strength. Constructed from Nylon 6/6 with a curved tip and self-locking head, it is UV resistant, plenum rated and UL listed for air handling spaces. Typical dimensions are 36 in length by 0.335 in width and a maximum bundle diameter of 11 in.
- Nylon 6/6 construction with 175 lb minimum loop tensile strength; self-locking head and curved tip for faster threading.
- Dimensions: 36 in length, 0.335 in width, maximum bundle diameter 11 in; operating temperature range -40 to 85 C (-40 to 185 F).
- Packaging and compliance: standard packaging 500 per case (standard bag 50); UL Listed 62275 Type 21/21S, Plenum Rated AH-2, RoHS compliant.
Product Highlights
36 in nylon cable tie; 175 lb tensile; plenum rated and UV resistant
Product Information
Standard Information
-
Brand: 3M
-
Manufacturer Part Number: CT36BK175-L
-
Country of Origin: United States
Technical Specifications
-
Brand: 3M
-
Manufacturer Part Number: CT36BK175-L
-
Manufacturer: 3M
-
Material: Nylon 6/6 (Polyamide 6/6)
-
Length: 36 in (914.4 mm)
-
Overall Length: 36 in (914.4 mm)
-
Width: 0.335 in (8.6 mm)
-
Thickness: 0.087 in
-
Tensile Strength: 175 lb (79.4 kg)
-
Maximum Bundle Diameter: 11 in (279.4 mm)
-
Operating Temperature Range: -40 to 85 C (-40 to 185 F)
-
UL/Plenum Ratings: UL Listed 62275 Type 21 or 21S; Plenum Rated AH-2
-
Flammability Rating: UL94V-2
-
RoHS Compliance: RoHS 2011/65/EU compliant
-
Color: Black
-
UV Resistant: Yes
-
Tip Style: Curved tip for faster threading
-
Locking Type: Self-locking head (standard locking)
-
Mounting Type: Free Hanging (In-Line)
-
Packaging Quantity: 500 per case (standard packaging also sold as 50 per bag)
-
Weight per Unit: 0.0436 lb
-
Package Weight: 23 lb (package of 500)
-
Product Dimensions (package): 8.38 x 43.12 x 6.38 in (package)
-
Country of Origin: United States
-
Shelf Life: 60 months
-
UNSPSC: 31201523
-
Tip: Curved
-
Type: Heavy Duty
-
Plenum rated: Yes
