3M CP-1 Parallel Clamp up to 35 kV 6 AWG

Product Description

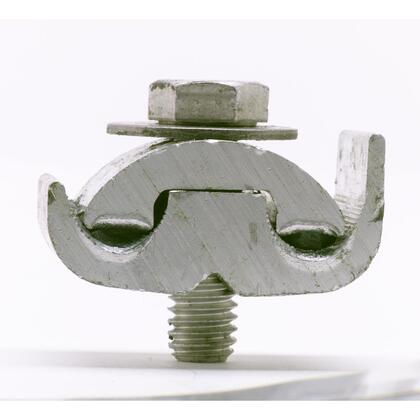

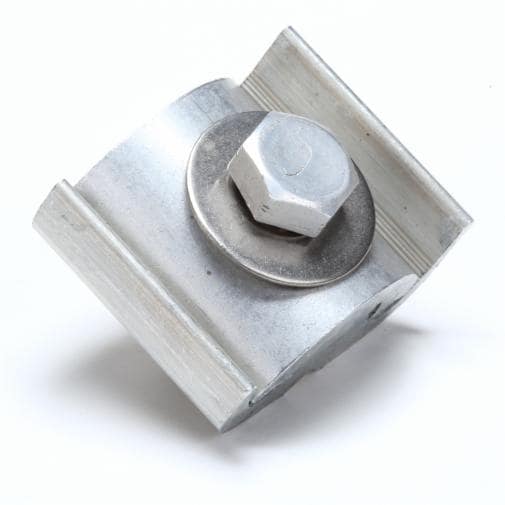

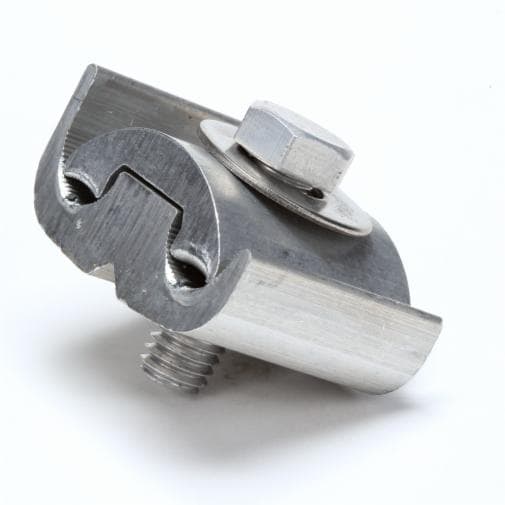

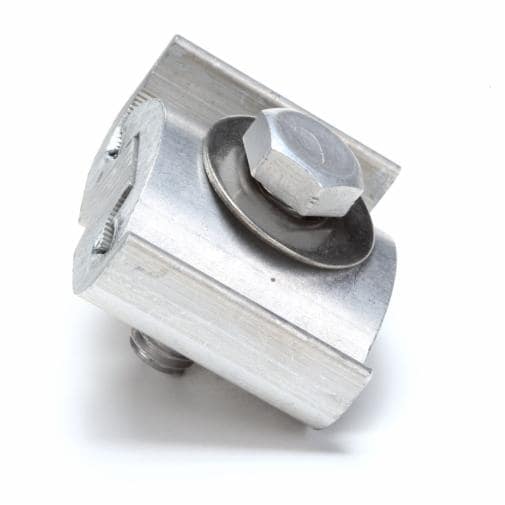

The 3M CP-1 Parallel Clamp is for aerial applications with 3M Stem Connectors SC Series and aluminum or copper conductors. Rated for 35 kV voltage applications, this aluminum base lug provides high conductivity. It accommodates 6 AWG (solid) thru 2/0 AWG (stranded) conductors and is RoHS 2011/65/EU Compliant.

• Designed to use with 3M Stem Connectors SC Series stem connectors
• For use with aluminum or copper conductors
• Accommodates 6 AWG (solid) thru 2/0 AWG (stranded) conductors

Product Highlights

The 3M CP-1 Parallel Clamp is for aerial applications with 3M Stem Connectors SC Series and aluminum or copper conductors.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: CP-1
• Country of Origin: USA

Technical Specifications

• Brands: 3M
• Compatible Conductor Size (Imperial): 2/0 AWG
• Compatible Conductor Size (Metric): 70 mm (Stranded)
• For Use With: Aluminum or Copper Conductors
• Lug Base Metal: Aluminum
• Lug Type: Compression Lugs
• Product Type: Parallel Clamp
• Material: Aluminum
• Allowable Gauge Range: 6 - 2/0
