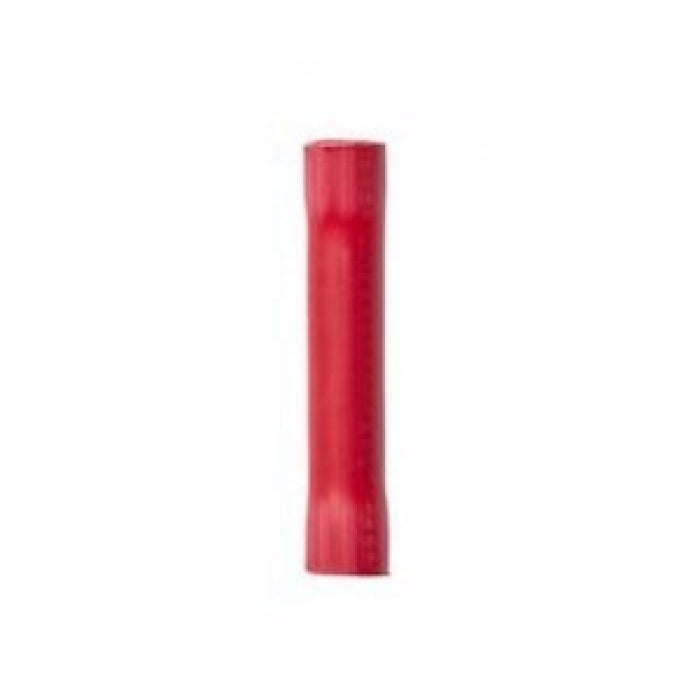

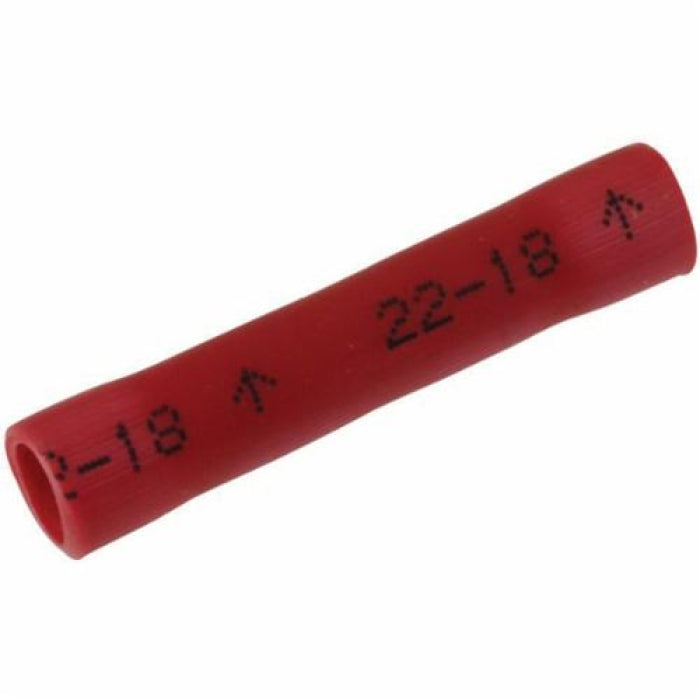

3M BSV18Q Color Coded Butt Splice Connector 22 to 18 AWG 1 in Length

3M
Brand: 3M
SKU: BSV18Q
Availability: In Stock
truck-svgrepo-com

Ships in 1-2 business days

$21.99
$21.99
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

3M BSV18Q Color Coded Butt Splice Connector is designed for connection of wires with sizes ranging from twenty-two to eighteen AWG. This connector has a durable construction featuring a butted seam barrel and a vinyl insulation that withstands temperature extremes from -40 to 221 degrees Fahrenheit.

  • Compatible with wire sizes 22 to 18 AWG
  • Features a butted seam barrel for secure connections
  • Constructed from electrolytic copper for improved conductivity

Product Highlights

The 3M BSV18Q butt splice connector enables reliable wire connections. It is ideal for various electrical applications requiring high durability and temperature resistance.

Product Information

Standard Information

  • Manufacturer: 3M
  • UPC: 051128599983

Technical Specifications

  • Conductor Size: 22 to 18 AWG
  • Length: 1 inch
  • Temperature Rating: -40 to 221 degrees Fahrenheit
  • Material: ETP Copper
  • Type: Butt
  • Voltage Rating: 600/1000 VAC
  • Barrel Inner Diameter: 0.145 inch
  • Barrel Length: 0.25 inch
  • Approval: UL 486-C, CSA 22.2
