3M BSV18Q Butt Splice Connector 22 to 18 AWG 1 in Length

Product Description

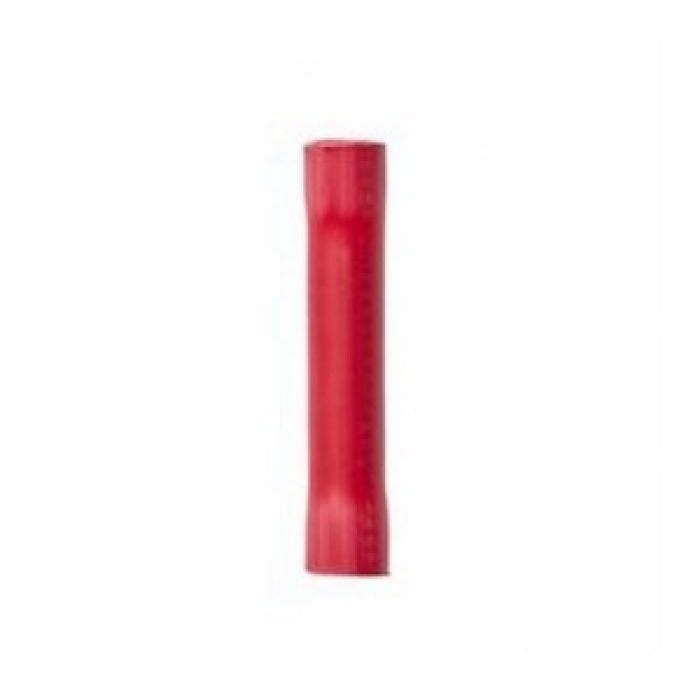

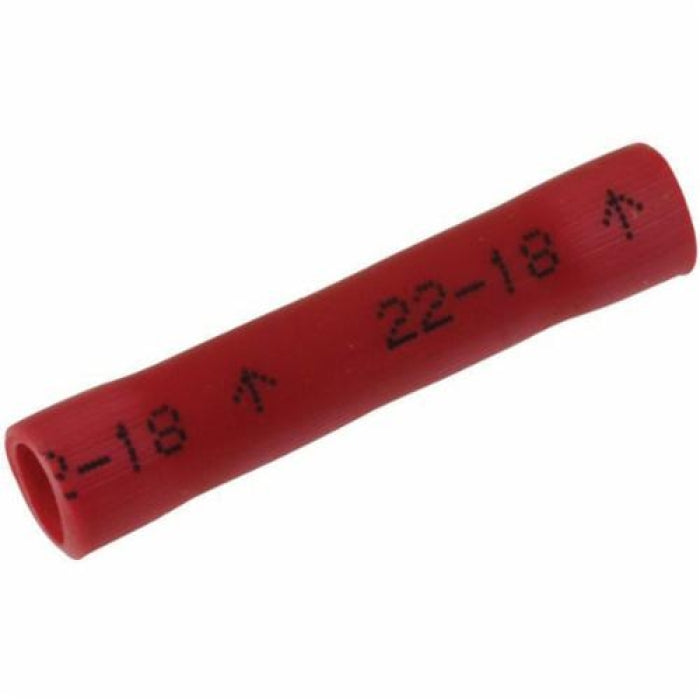

The 3M BSV18Q is a color coded butt splice connector designed for reliable electrical connections. It accommodates wire sizes ranging from twenty-two to eighteen AWG and has a length of one inch. The butt splice connector features a butted barrel type and is made of copper with a red vinyl insulation.

• Color coded for easy identification.
• Withstands a temperature range of -40 to 221 degrees F.
• UL listed and CSA certified for safety.

Product Highlights

The butt splice connector ensures a secure fit and reliable performance for electrical wiring applications.

Product Information

Standard Information

• Brand: 3M
• MPN: BSV18Q

Technical Specifications

• Wire Size: 22 to 18 AWG
• Length: 1 inch
• Barrel Length: 0.25 inch
• Barrel Inner Diameter: 0.145 inch
• Material: Copper
• Insulation Type: Vinyl Insulated
• Temperature Rating: 221 degrees F
• Voltage Rating: 600/1000 VAC
