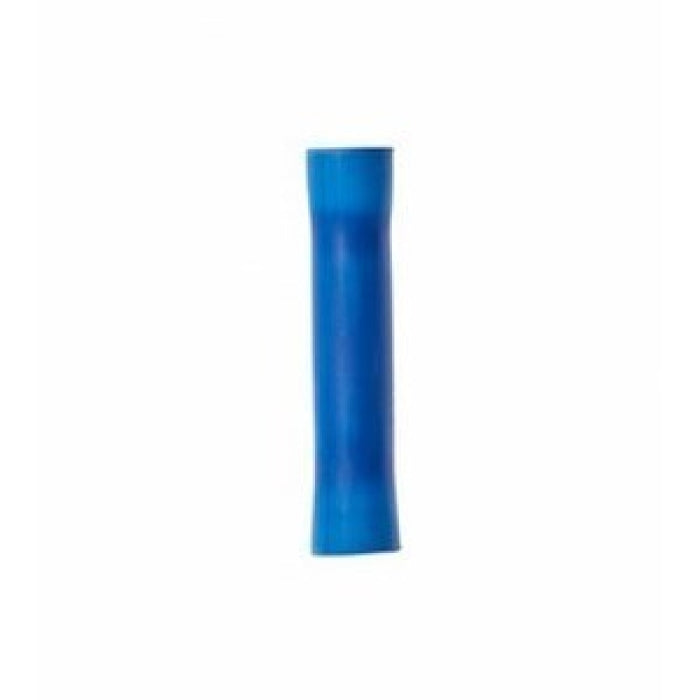

3M BSV14Q Color Coded Insulated Butt Splice Connector 16 to 14 AWG Conductor 1 in L

Product Description

3M BSV14Q is a color-coded insulated butt splice connector designed for 16 to 14 AWG conductors. It features a vinyl insulated barrel with a butted seam for a secure fit. The connector can handle a temperature range from -40 to 221 degrees Fahrenheit and is ideal for use in various electrical applications.

• Blue vinyl insulation for identification
• Electrolytic copper for improved conductivity
• Compatible with a wide range of wire sizes

Product Highlights

This product is essential for creating reliable and safe wirings in both residential and commercial settings.

Product Information

Standard Information

• Manufacturer: 3M
• Part Number: BSV14Q

Technical Specifications

• Conductor Size: 16 to 14 AWG
• Length: 1 inch
• Barrel Length: 0.25 inch
• Barrel Inner Diameter: 0.17 inch
• Material: ETP Copper
• Temperature Rating: 221 degrees Fahrenheit
• Voltage Rating: 600 VAC
• Approval: UL 486-C, CSA 22.2
