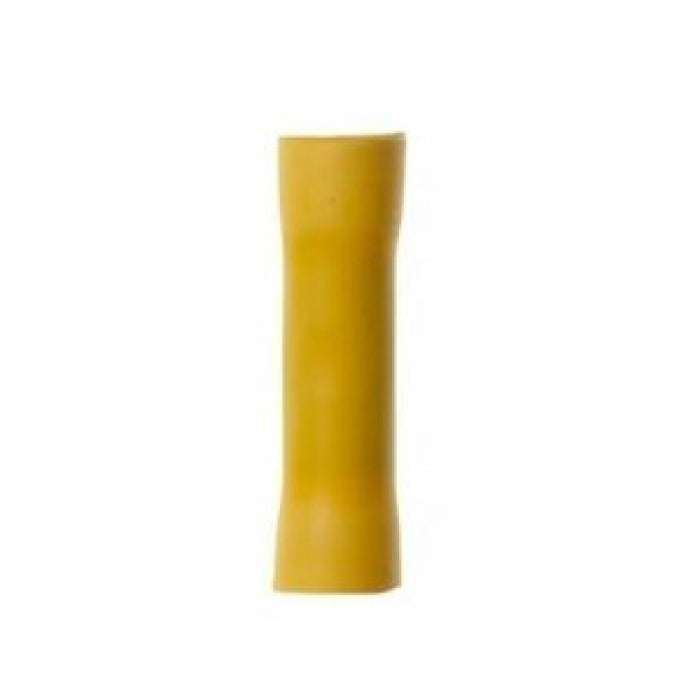

3M BSV10Q Color Coded Insulated Butt Splice Connector 12 to 10 AWG

Product Description

The 3M BSV10Q is a color-coded insulated butt splice connector designed for copper conductors sized 12 to 10 AWG. It features a butted-seam barrel with vinyl insulation and a length of one point zero two inches. This connector is suitable for environments with temperatures ranging from negative forty to two hundred twenty-one degrees Fahrenheit. The electrolytic copper material ensures effective conductivity, while the tin plating helps resist corrosion.

• Yellow vinyl insulation provides clear identification.
• Temperature range: -40 to 221 degrees Fahrenheit.
• Rated at 600 VAC for residential and industrial applications.

Product Highlights

This product incorporates a reliable crimping design for optimal performance.

Product Information

Standard Information

• Manufacturer: 3M
• Part Number: BSV10Q

Technical Specifications

• Conductor Size: 12 to 10 AWG
• Length: 1.02 inches
• Type: Butted Barrel
• Material: Electrolytic Copper
• Voltage Rating: 600 VAC
• Insulation Material: Vinyl
• Color: Yellow
• Standards: UL, CSA
