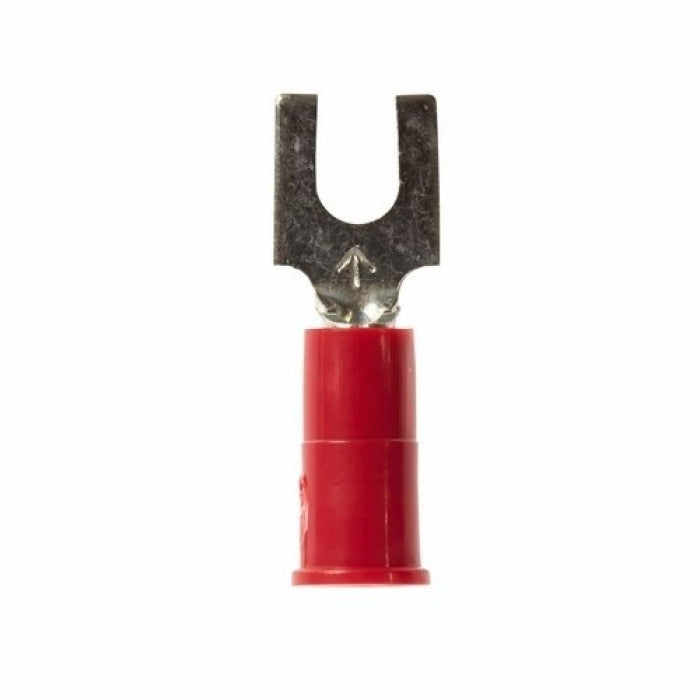

3M BFV18-8Q Highland Vinyl Block Fork Terminal 22 to 18 AWG #8 Stud

Product Description

3M Highland BFV18-8Q is a block insulated fork terminal designed for wire sizes from twenty-two to eighteen AWG. This terminal type features a butted seam barrel and includes a funnel-designed PVC sleeve. This design assists with wire placement during installation and provides mechanical stress relief at the insulation point.

• Allows for color-coded identification for wire size.
• Features a reliable butted seam barrel for secure connections.
• Constructed from electrolytic copper, ensuring good conductivity.

Product Highlights

This product delivers dependable performance and is suitable for terminal block applications. It withstands a temperature range of negative forty to two hundred twenty-one degrees Fahrenheit, making it ideal for various environments.

Product Information

Standard Information

• Brand: 3M
• MPN: BFV18-8Q

Technical Specifications

• Wire Size: 22 to 18 AWG
• Stud Size: #8
• Length: 0.85 inches
• Temperature Rating: -40 to 221 degrees F
• Voltage Rating: 600 to 1000 VAC
• Material: Electrolytic Copper with Vinyl Insulation
• Standard Package: 25 per bag
• Color: Red
