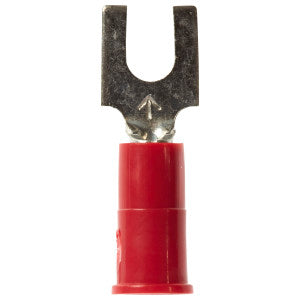

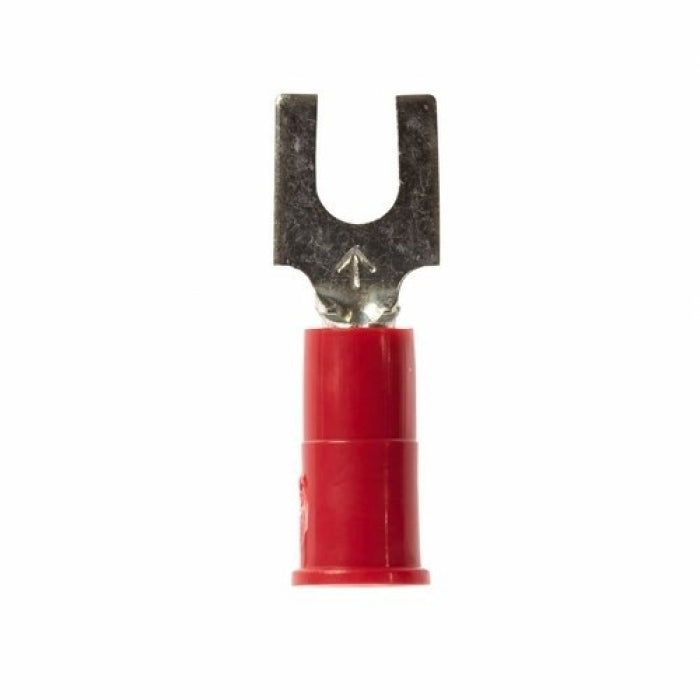

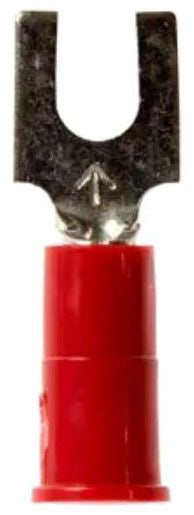

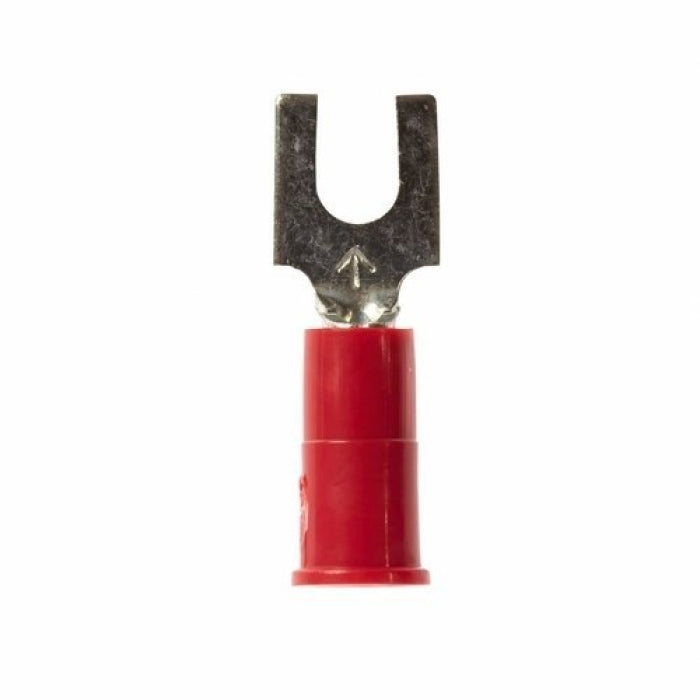

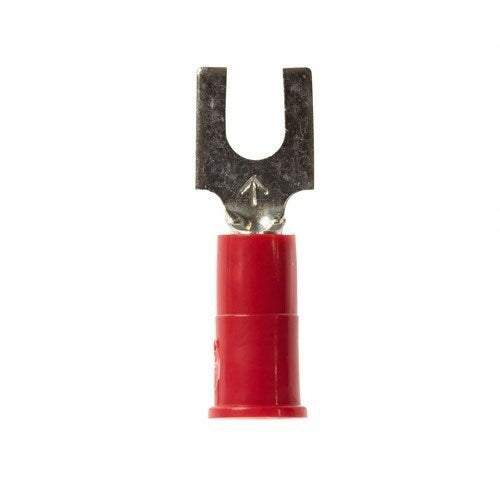

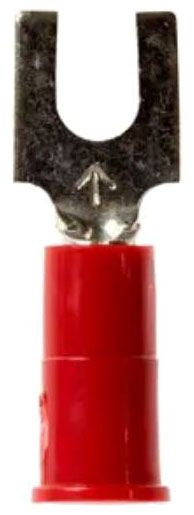

3M BFV18-8Q Block Insulated Fork Terminal, 22 to 18 AWG Conductor, 25/Bag

Product Description

The 3M BFV18-8Q is a block insulated fork terminal designed for wire sizes ranging from 22 to 18 AWG. This terminal features a butted seam barrel and is equipped with a PVC sleeve that offers easy wire insertion. Its electrolytic copper construction ensures strong electrical conductivity and mechanical support.

• Fork tongue design allows for secure connections.
• Suitable for terminal block applications.
• Rated for use in temperatures from -40 to 221 degrees Fahrenheit.

Product Highlights

Provides reliable connections for building wire and fixtures.

Product Information

Standard Information

• Manufacturer: 3M
• Part Number: BFV18-8Q

Technical Specifications

• Conductor Size: 22 to 18 AWG
• Stud Size: #8
• Length: 0.85 in
• Material: Electrolytic Copper/Vinyl
• Insulation Type: Vinyl Insulated
• Temperature Rating: -40 to 221 degrees Fahrenheit
• Voltage Rating: 600 to 1000 VAC
• Approval: UL 486A, CSA C22.2
