Product Description

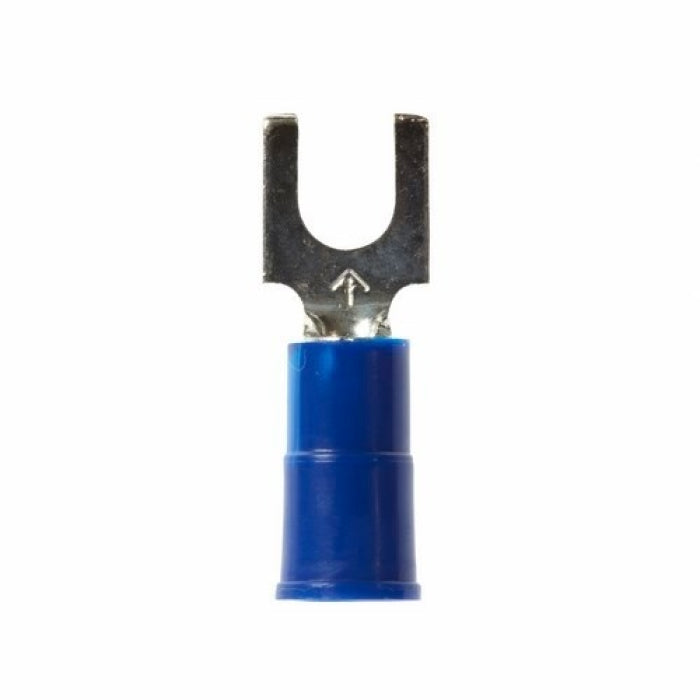

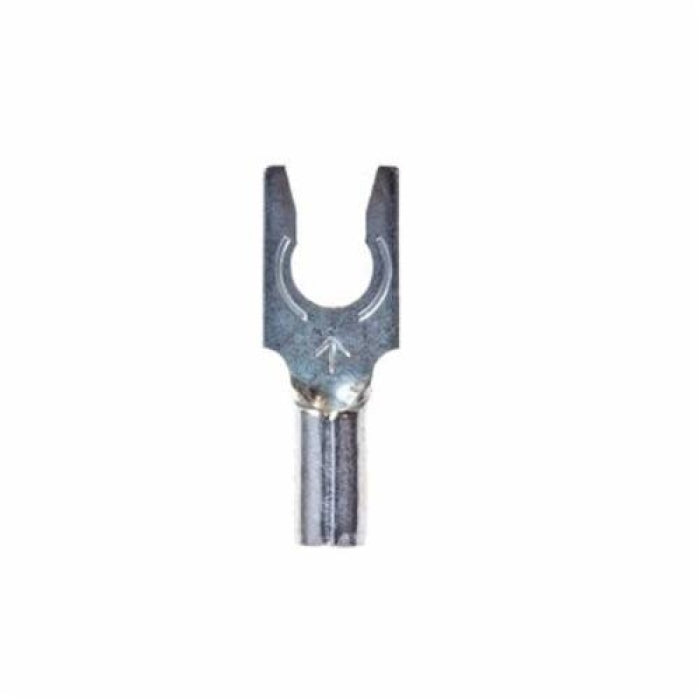

The 3M BFV14-8Q is a block insulated fork terminal designed to accommodate conductors ranging from sixteen to fourteen AWG. This terminal features a butted seam barrel and is made from electrolytic copper with a vinyl coating.
- Fork tongue design for reliable connection
- Temperature range of negative forty to two hundred twenty-one degrees Fahrenheit
- Rated for six hundred volts AC
Product Highlights
This product offers effective wire connections for various electrical applications. The fork terminal design allows for easy installation and removal, ensuring a secure fit that enhances performance.
Product Information
Standard Information
-
Manufacturer: 3M
-
MPN: BFV14-8Q
Technical Specifications
-
Barrel Size: 1/4 in L
-
Color: Blue
-
Conductor Size: 16 to 14 AWG
-
Conductor Type: Copper/ETP
-
Dimensions: 0.3 in W x 0.03 in THK
-
Finish: Tin Plated
-
Stud Size: #8
-
Type: Block Insulated
-
Voltage Rating: 600 VAC
-
Temperature Rating: -40 to 221 deg F
