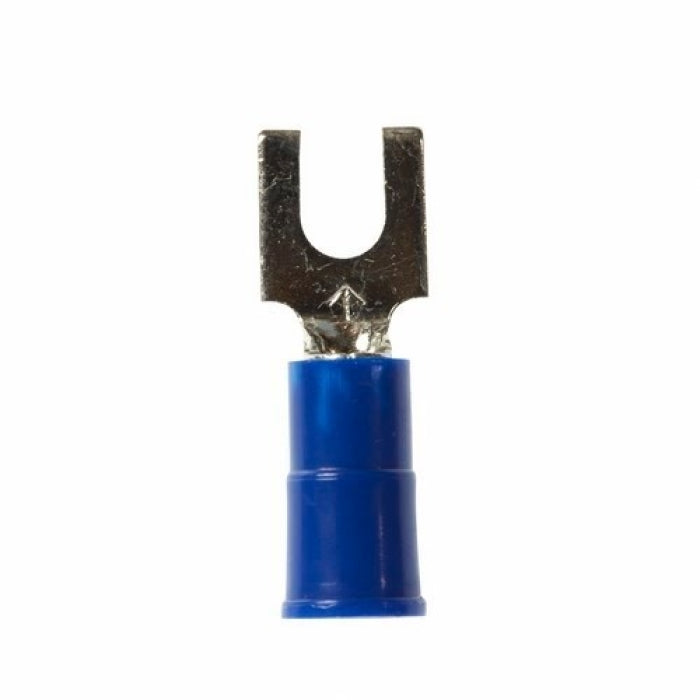

3M BFV14-6Q Highland Block Insulated Fork Terminal 16 to 14 AWG Conductor

Product Description

The 3M Highland BFV14-6Q is a block insulated fork terminal that accommodates 16 to 14 AWG conductors. It features a butted seam barrel with a funnel-designed rigid molded polyvinyl chloride sleeve for easy wire insertion. The terminal provides reliable electrical contacts and mechanical stress relief. The vinyl insulation is abrasion-resistant, ensuring durability during crimping. This terminal is suitable for various electrical applications where a secure connection is needed.

• Color coded for easy identification of wire size.
• Requires a #6 stud for installation.
• Rated for 600 to 1000 VAC and a temperature range of -40 to 221 degrees F.

Product Highlights

The Highland fork terminal offers a reliable and corrosion-resistant connection, ideal for demanding electrical environments.

Product Information

Standard Information

• Manufacturer: 3M
• Brand: Highland

Technical Specifications

• Conductor Size: 16 to 14 AWG
• Length: 0.85 inches
• Stud Size: #6
• Barrel Type: Butted seam
• Material: Electrolytic copper/vinyl
• Insulation Type: Vinyl
• Voltage Rating: 600 to 1000 VAC
• Temperature Rating: -40 to 221 degrees F
