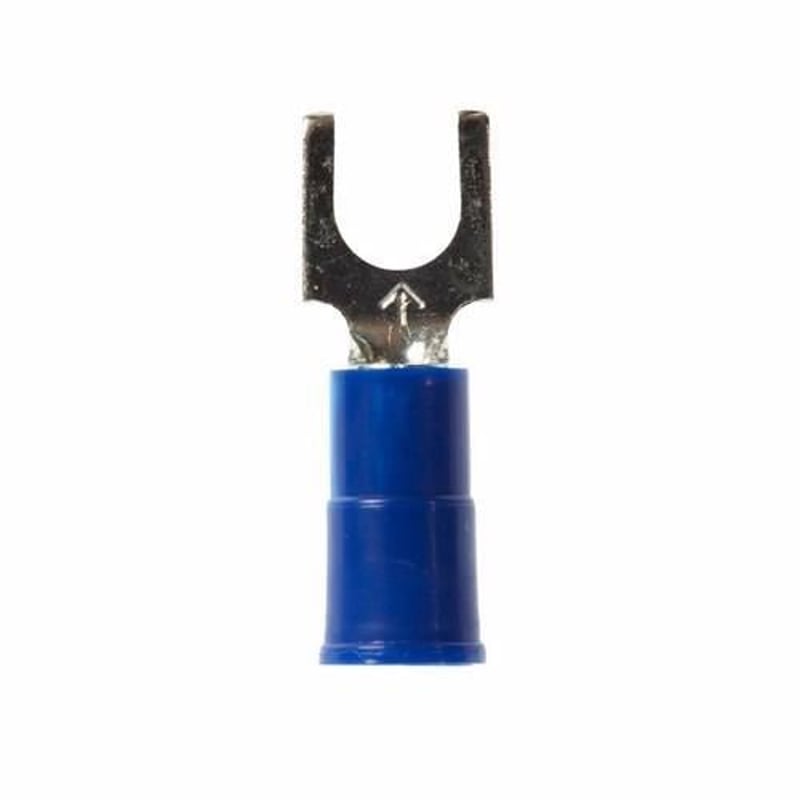

3M BFV14-10Q Vinyl Insulated Block Fork Terminal, 16-14 AWG

Product Description

The 3M BFV14-10Q is a vinyl insulated block fork terminal designed for connections within wire management systems. This terminal is compatible with wire sizes ranging from sixteen to fourteen AWG. The reliable design features a butted-seam barrel which provides a secure fit.

• Constructed from electrolytic copper for enhanced conductivity.
• Rated for temperatures from -40 to 221 degrees Fahrenheit.
• Meets standards for UL and CSA compliance.

Product Highlights

The 3M BFV14-10Q offers a dependable connection solution with its durable vinyl insulation and color-coded design for quick identification.

Product Information

Standard Information

• Brand: 3M
• Part Number: BFV14-10Q

Technical Specifications

• Wire Size: 16-14 AWG
• Material: Vinyl
• Connection Type: Fork
• Temperature Rating: -40 to 221 degrees Fahrenheit
• Box Quantity: 10 terminals
• UNSPSC Code: 31200000
• Sub Brand: Highland
• Standard Compliance: UL and CSA
