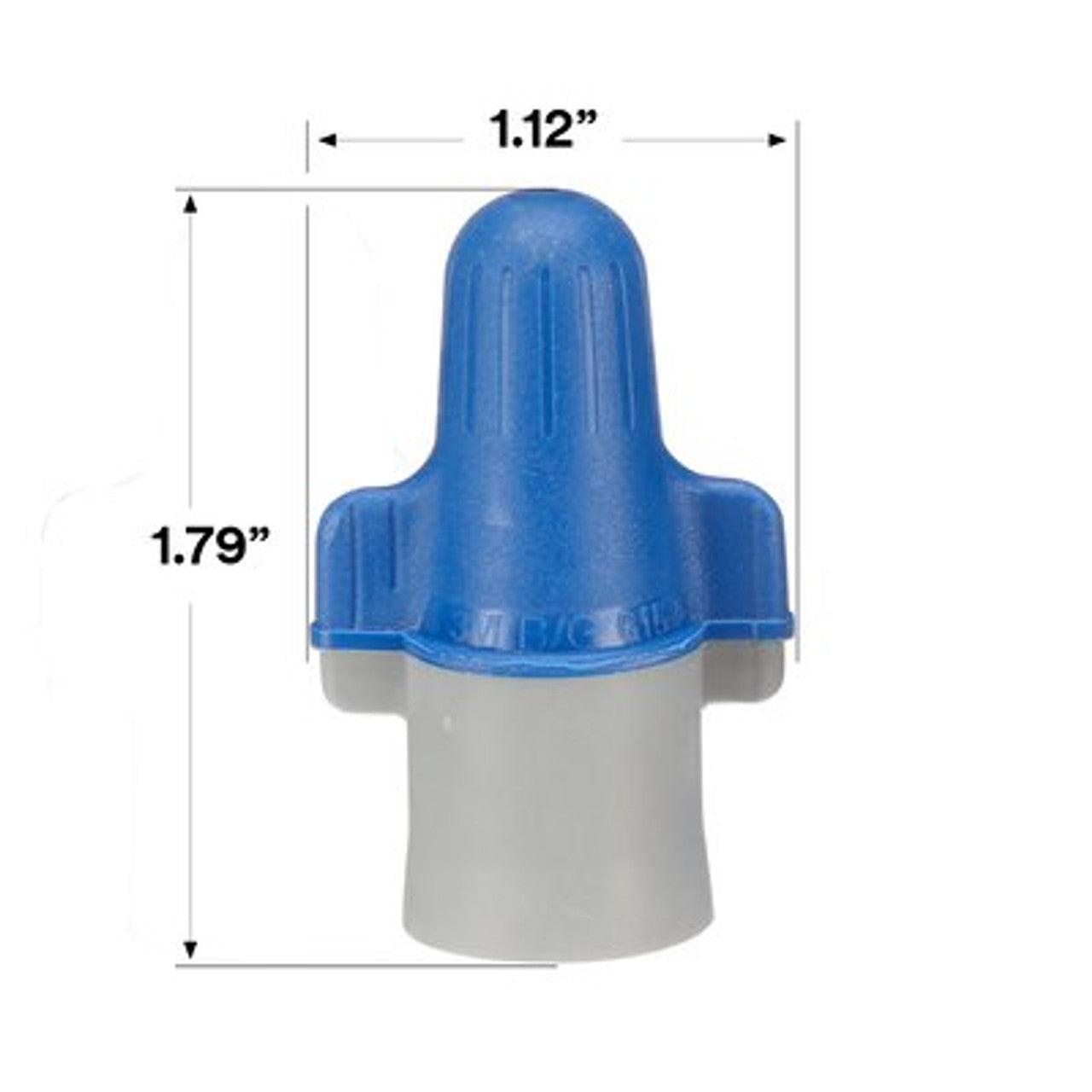

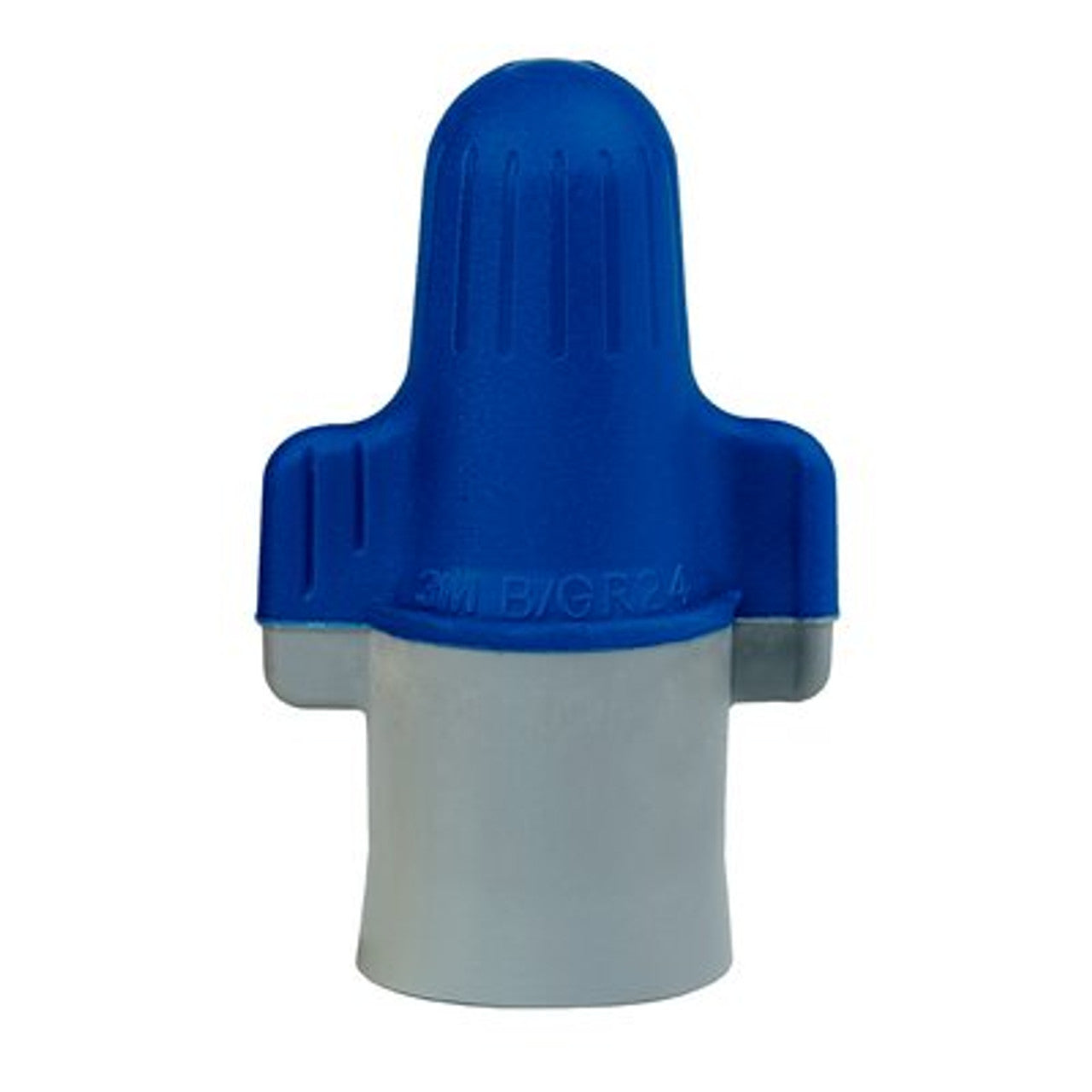

3M B/G+POUCH(B/G+BOX) Performance Plus Wire Connector B/G

Product Description

The 3M Performance Plus Wire Connector B/G with part number B/G+POUCH(B/G+BOX) is a flame-retardant connector made for copper wires. This connector works with wire sizes from fourteen to six AWG. It features a winged shell design that is dual color-coded in blue and gray, allowing for easy identification. The connector is suitable for use on building wire rated at six hundred volts and also on signs, fixtures, or luminaires rated at one thousand volts. It can operate in temperatures up to two hundred twenty-one degrees Fahrenheit (one hundred five degrees Celsius).

• Provides secure wire connections due to its strong bite.
• Accommodates a range of wire sizes and allows for reuse due to its expandable spring.
• Simplifies application through its dual color-coding.

Product Highlights

This wire connector is UL Listed and CSA Certified. It is packaged with fifty units per box and five hundred units per case.

Product Information

Standard Information

• Part Number: B/G+POUCH
• UPC: 00054007431503

Technical Specifications

• AWG: #14-#6
• Color: Blue/Gray
• Temperature Rating: Up to 221 degrees F (105 degrees C)
• Voltage Rating: Building wire rated 600V and luminaires rated 1000V
• Material: Plastic
• Shell Style: Winged
• Item Weight: 0.02 lbs per EA
