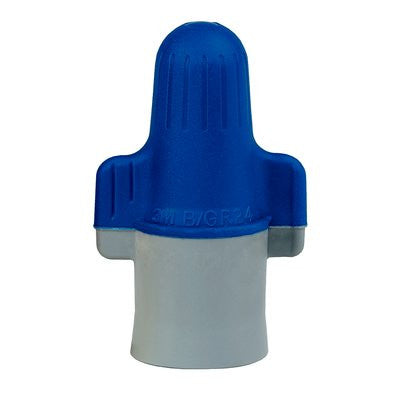

3M B/G Performance Plus Wire Connectors

Product Description

The 3M B/G Performance Plus Wire Connectors feature a uniquely flexible spring that expands for a secure connection. With an increased wire range, these connectors handle the work of multiple standard connectors. They are UL Listed for 600 volts on copper wire and feature a flexible skirt to help prevent copper exposure.

• Strong bite for a secure, reliable connection
• Flexible spring expands for greater wire range and reuse
• Dual color coded: one connector does the job of two traditional connectors in the majority of applications

Product Highlights

These wire connectors offer a secure and reliable connection with an expanded wire range and enhanced safety features.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: B/G
• Country of Origin: USA

Technical Specifications

• Brands: 3M
• Conductor Sizes (Imperial): 14 - 6 AWG, 22 - 8 AWG, 22 - 12 AWG
• Connection Type: Pigtail, Wire
• Connector Style: Twist On
• Flame Retardant: Yes
• Grease Filling Against Corrosion: No
• Insulation Color: Orange/Blue, Blue/Gray
• Insulation Material: Polypropylene & Thermoplastic Elastomer
• Material: Plastic
• Maximum Conductor Size (Imperial): 6 AWG, 8 AWG, 12 AWG
• Maximum Conductor Size (Metric): 4 mm², 10 mm², 16 mm²
• Maximum Insulation Outer Diameter (Metric): 3.7 mm
• Maximum Insulation Outside Diameter: 0.145 in
• Maximum Operating Temperature (Celsius): 105 ℃
• Maximum Operating Temperature (Fahrenheit): 221 ℉
• Maximum Recommended Voltage Rating: 600 V
• Maximum Voltage Rating: 600 V
• Minimum Conductor Size (Imperial): 14 AWG, 22 AWG
• Minimum Conductor Size (Metric): .34 mm², 2.5 mm²
• Product Type: Connector
• Specifications Met: CSA, UL Listed
• Voltage Rating: 600 V
• Wire Connector Type: Twist-on Wire Connectors
• Minimum Wire Gauge: 14 AWG
• Wire Range: 4 #14 To 2 #6 wire range
