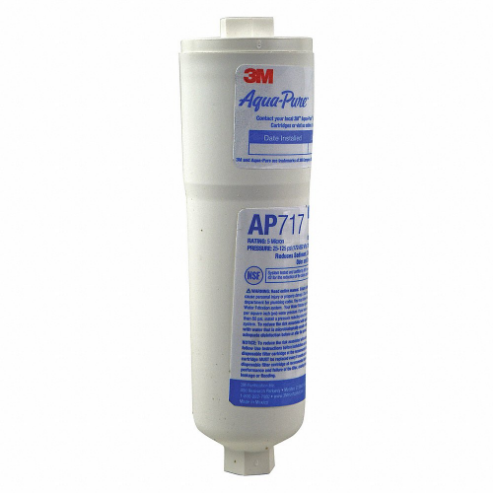

3M Aqua-Pure 70020318864 ap717 water filter 1500 gallon

Product Description

The 3M AQUA-PURE 70020318864 AP717 is an inline water filter system with a quick-change cartridge. It reduces chlorine taste and odor and filters particulates and sediment. It features proprietary scale and corrosion inhibition media. The filter has a 5-micron rating, a peak flow rate of 0.75 GPM, and a filter capacity of 1500 gallons.

• Quick-Change Cartridge
• Chlorine Taste and Odor Reduction
• Particulate Filtration

Product Highlights

Inline water filter reduces chlorine taste and odor and filters particulates and sediment. Features proprietary scale and corrosion inhibition media.

Product Information

Standard Information

• Brand: 3M AQUA-PURE
• Manufacturer Part Number: 70020318864
• Country of Origin: MX

Technical Specifications

• Type: Quick-Change Cartridge, Chlorine Taste, Odor, Particulate, In-Line, Sediment
• Inlet/Outlet Connection: 1/4 Inch Threaded
• Filter Rating: 5 Micron
• Peak Flow Rate: 0.75 GPM
• Filter Media Type: Carbon
• Inclusions/Features: Proprietary Scale, Corrosion Inhibition Media
• Applicable Standard: FDA CFR-21, NSF/ANSI 42
• Filter Capacity: 1500 Gallon
• Pressure Rating: 25 to 100 PSI
• Temperature Rating: 40 to 100 Deg F
• Application: Universal In-Line Filtration, Refrigerator, Ice-Maker, Scale Inhibition
• Connection Size: 1/4"
• Connection Type: NPT
• Diameter: 2 1/4"
• Features: Requiring No Contact With The Filter Media During Cartridge Change Out, Sanitary Design
• Filter Media: Carbon
• Flow Rate: 0.5 GPM
• For Use With: Coffee Machines, Drink Dispensers, Drinking Fountains, Ice Makers, Refrigerators
• Max. Pressure: 125 psi
• Maximum Temperature: 100°F
• Microns: 5 µm
• Minimum Pressure: 25 psi
• Minimum Temperature: 40°F
• Overall Height: 8 3/8"
• Pipe Size: 1/4"
• Reduces: Chlorine Taste And Odor, Scale, Sediment
• Removes Particle Size Down To: 5 µm
• Series: Aqua-Pure
• Service Life: 1500 gal.
• Size: 1/4"
• Standards: Nsf/Ansi 42
