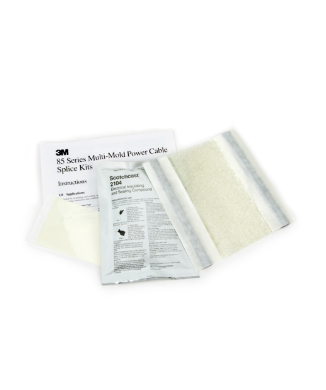

3M 85-12 Scotchcast Multi-Mold Resin Splice Kit 0 - 600 V Non-Shielded

Product Description

The 3M 85-12 Scotchcast Multi-Mold Resin Splice Kit is used for splicing non-shielded cables and can handle voltages up to six hundred volts. This kit is designed for various configurations including inline, wye, x, butt, and dead end types. It is suitable for 1 AWG stranded and 2/0 AWG stranded conductors. This splice kit offers excellent water resistance and insulation for underground applications.

• Rated for 0 - 600 V applications
• Includes Scotchcast electrical insulating compound and adhesive sealing strip
• Easy to use with detailed instruction booklet

Product Highlights

The 3M 85-12 kit is ideal for direct burial in various applications including underground systems and secondary distribution lines.

Product Information

Standard Information

• Manufacturer: 3M Co.
• Brand: 3M Electrical Products

Technical Specifications

• Catalog Number: 85-12
• Voltage Rating: 1 kV
• Insulator Type: Multi Molded Resin
• Cable Type: Multiple Conductor, Single Conductor, Non-Shielded
• Contents: Scotchcast electrical insulating compound, adhesive film sealing strip
• Connector Type: Compression Tap, Split Bolt
• Made in: USA
