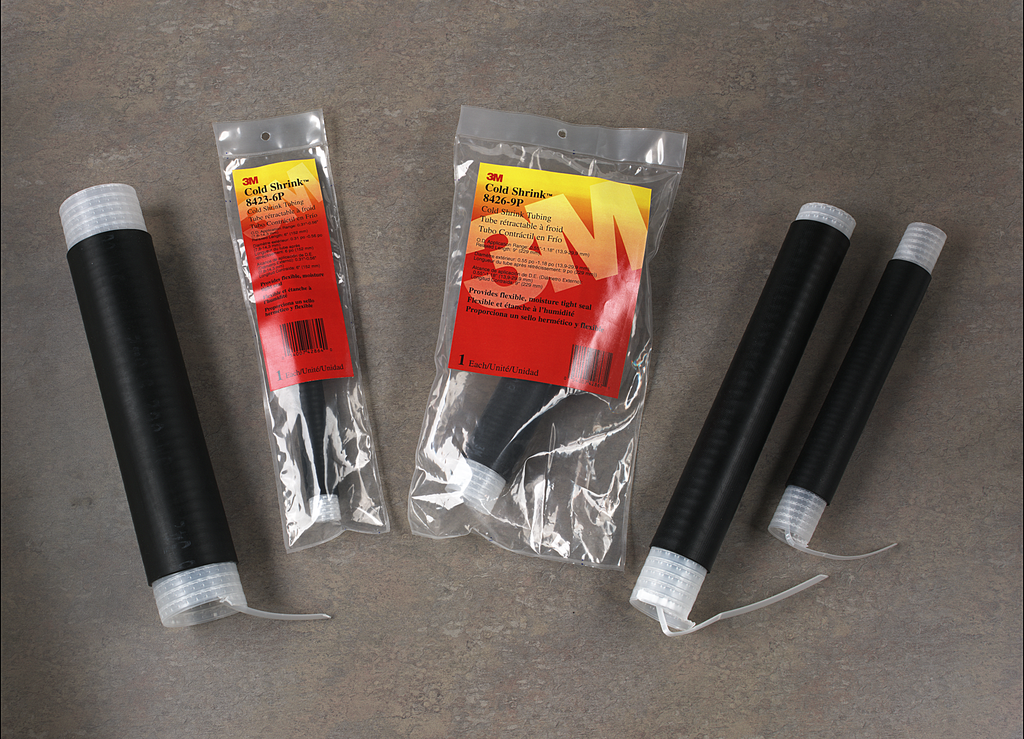

3M 8430-18 Cold Shrink Connector Insulator 1 kV (1250-2000 kcmil) Replacement MPN

Product Description

The 3M 8430-18 Cold Shrink Connector Insulator is a reliable solution for insulating solid dielectric insulated wires and cable splices. This insulator features a moisture-tight seal, making it suitable for underground applications and submersible repairs. After positioning over the connection, the core is removed, allowing the insulator to shrink and form a secure seal. It meets ANSI certifications and offers protection for high-voltage connectors.

• Temperature range: Withstands from -40 to 194 degrees F (-40 to 90 degrees C)
• Environmentally sealed for non-electrical applications
• Rated for primary insulation of solid dielectric cables up to 1 kV

Product Highlights

Efficient installation without tools, using EPDM rubber that resists moisture and environmental damage.

Product Information

Standard Information

• Brand: 3M
• MPN: 8430-18

Technical Specifications

• Voltage Rating: 1 kV
• Conductor Size: 1250 kcmil to 2000 kcmil
• Length: 0.457 m
• Diameter: 93.7 mm
• Material: EPDM Rubber
• Applications: Insulation, Mechanical Protection, and Repair
• Shrink Ratio: 2:1
• GTIN: 00054007423881
