3M 8429-18 Cold Shrink Connector Insulator 1 kV 900-1000 kcmil

Product Description

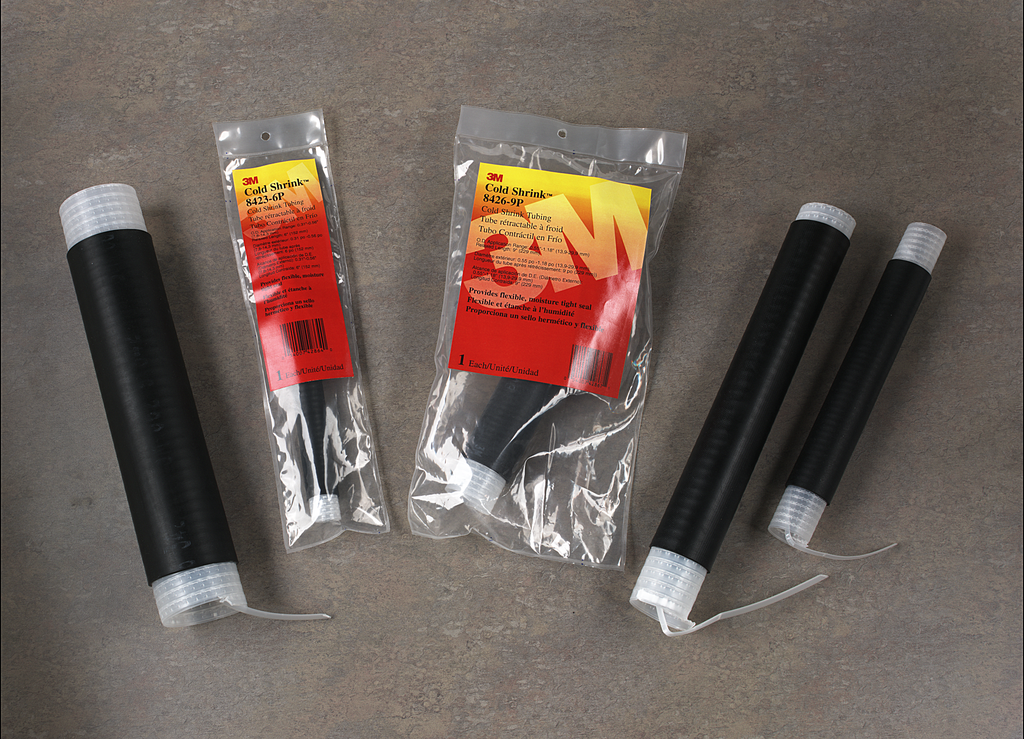

The 3M 8429-18 Cold Shrink Connector Insulators are designed for effective insulation applications. These tubular, EPDM rubber sleeves are factory expanded on a removable core. This allows for easy positioning of the insulator over connections for a tight, water-resistant seal once installed.

• Provides insulation for solid dielectric insulated wires and cable splicing rated up to 1000 volts.
• Simple installation process that requires no tools for setup.
• Withstands operating temperatures ranging from -40 to 194 degrees Fahrenheit.

Product Highlights

The cold shrink technology ensures a moisture-tight seal that enhances the longevity of electrical connections.

Product Information

Standard Information

• Brand: 3M
• MPN: 8429-18

Technical Specifications

• Material: EPDM Rubber
• Voltage Rating: 1 kV
• Cable Type: Power Cable
• Conductor Size: 900 to 1000 kcmil
• Overall Length: 18 inches
• Number of Conductors: 1
• Maximum Operating Temperature: 194 degrees Fahrenheit
