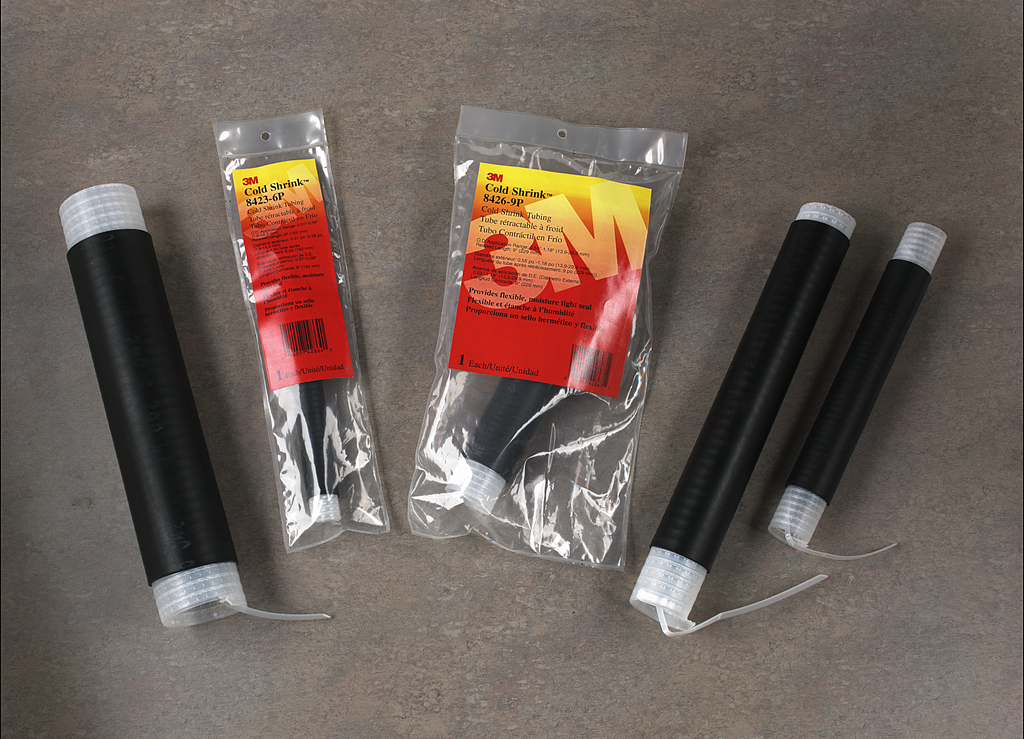

3M 8426-9P Cold Shrink Tube 1 kV (2/0 AWG-250 Kcmil) Replacement MPN

Product Description

3M Cold Shrink Insulator 8426-9P is designed for secure insulation and moisture protection in electrical applications. Utilizing a cold shrink delivery system, this product is ready to install, allowing for efficient application. Removing the core after position ensures a tight moisture-proof seal. The EPDM material provides a strong and durable environmental barrier for cable connections.

• Simple tool-free installation
• Durable EPDM rubber composition
• Suitable for applications rated up to 1 kV

Product Highlights

This insulator is effective for primary electrical insulation and can be used for repairs and environmental sealing in communications.

Product Information

Standard Information

• Manufacturer: 3M
• Catalog Number: 8426-9P

Technical Specifications

• Conductor Size: 2/0 AWG to 250 kcmil
• Voltage Rating: 1 kV
• Material: EPDM
• Max Operating Temperature: 194 degrees F
• Length: 9 inches
• Dielectric Strength: 365 V/mil
• Number of Conductors: 1
