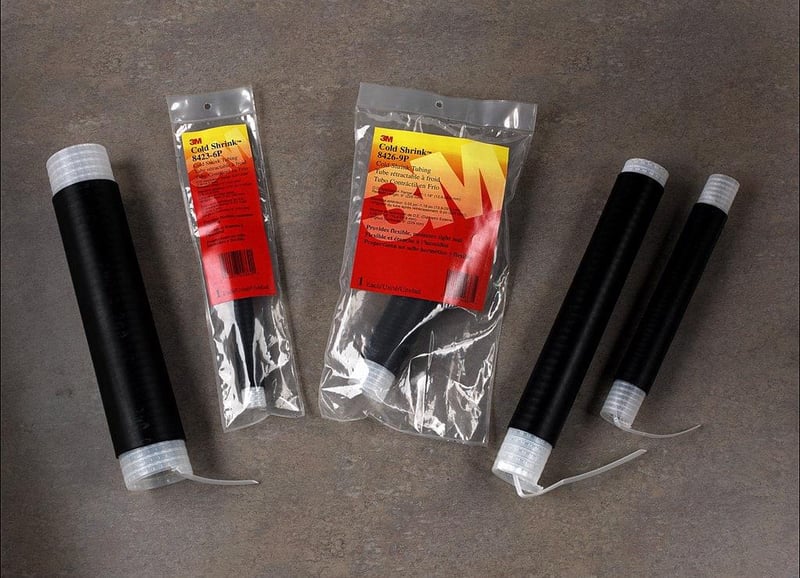

3M 8426-9M Cold Shrink Insulator, 2-4/0 AWG, 600V

Product Description

The 3M Cold Shrink Insulator 8426-9M is designed for effective insulation of wires and cables rated for up to 1000 volts. This insulator uses a proprietary cold shrink delivery system that simplifies installation and ensures a moisture-tight seal. The product is pre-stretched on a removable core, which is removed after positioning over the splice, allowing it to shrink securely into place.

• Suitable for wire sizes from 2 to 4/0 AWG.
• Typical operating temperature ranges from -40 to 194 degrees Fahrenheit.
• Durable environmental seal that meets ANSI C119-1 standards.

Product Highlights

The 3M 8426-9M is ideal for primary electrical insulation for solid dielectric insulated wire. It is also effective for sealing applications in communication and non-electrical contexts. The insulator offers reliable performance in harsh environments, providing longevity and safety in installations.

Product Information

Standard Information

• Brand: 3M
• MPN: 8426-9M

Technical Specifications

• Voltage Rating: 1000V
• Temperature Range: -40 to 194 degrees Fahrenheit
• Material: EPDM rubber
• Number of Conductors: 1
• Size Compatibility: 2 to 4/0 AWG
• Box Quantity: 10
• Stripped Catalog Number: 7000132877
• Alternate Catalog Number: 8426-9M
