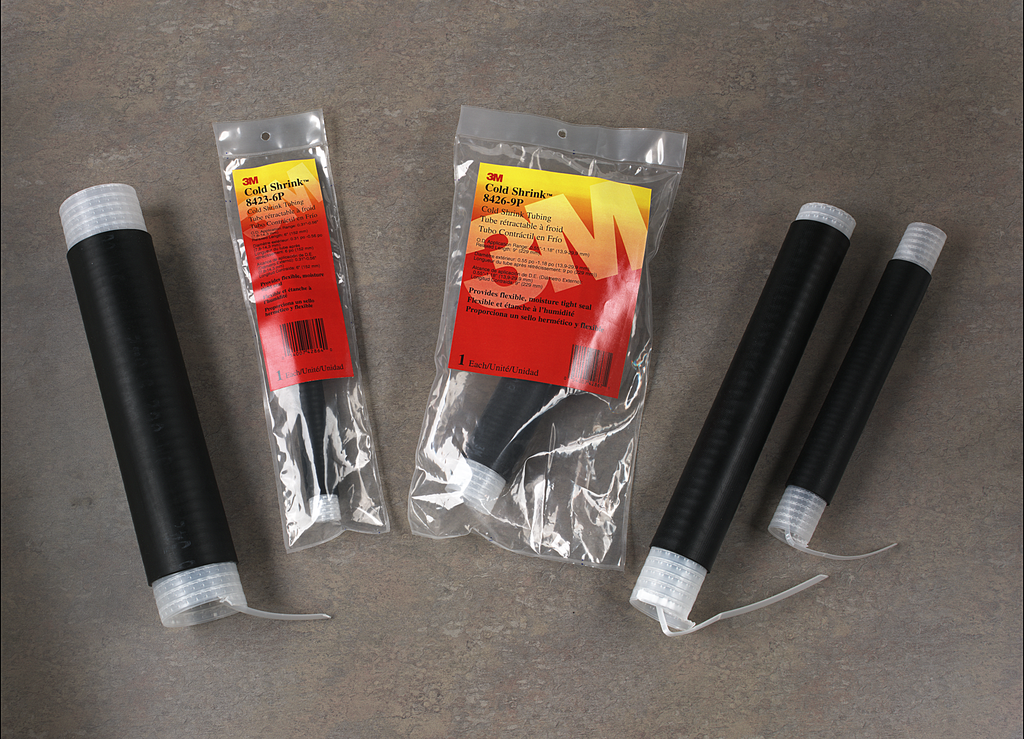

3M 8425-8P Cold Shrink Tube

Product Description

3M Cold Shrink Tube, MPN 8425-8P, is engineered for reliable cold shrink splicing applications. This component is pre-stretched on a removable core for easy installation. Once in place, the core can be removed, allowing the tube to shrink, forming a moisture-tight seal around the splice.

• Environmental sealing for non-electrical applications.
• Suitable for primary insulation of solid dielectric insulated wires up to 1 kV.
• Operates in temperatures between -40 and 194 degrees F.

Product Highlights

This cold shrink tube offers durable environmental sealing and insulation using EPDM material, rated for a maximum operating temperature of one hundred ninety-four degrees Fahrenheit.

Product Information

Standard Information

• Brand: 3M
• Catalog Number: 8425-8P
• Product Type: Cold Shrink Splice

Technical Specifications

• Voltage Rating: 1 kV
• Cable Type: Power Cable
• Conductor Size: 2 to 1/0 AWG
• Material: EPDM Rubber
• Length: 8 inches
• Maximum Diameter: 0.82 inches
• Additional Information: Tube length 8 inches; ANSI C119.1 compliant
