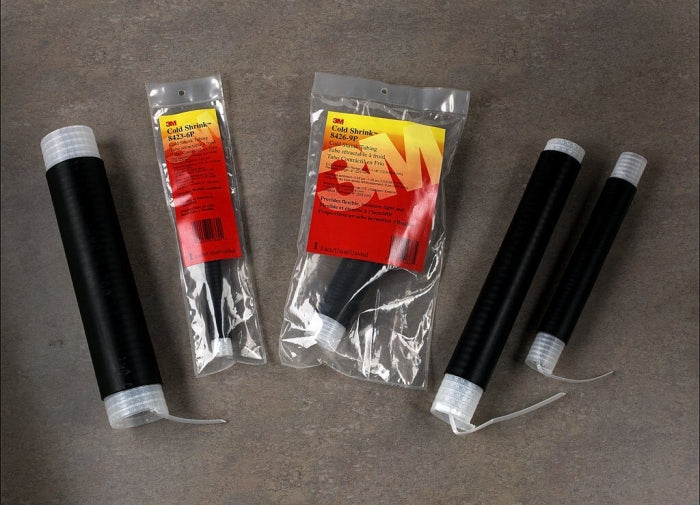

3M 8425-8 Cold Shrink Connector Insulator 1 kV 8 in Length

Product Description

The 3M 8425-8 Cold Shrink Connector Insulator is an open-ended tubular sleeve designed for electrical insulation in high-voltage applications rated up to one kilovolt. It is made from EPDM rubber which provides resistance against ozone, acids, and alkalis. Suitable for solid dielectric insulated wires and cable splices, this insulator can withstand temperatures ranging from minus forty to one hundred ninety-four degrees Fahrenheit. The cold shrink design allows for quick and easy installation without any special tools or heat application.

• 0.4 inches diameter minimum and 0.82 inches diameter maximum
• Length of 8 inches
• 1400 psi tensile strength

Product Highlights

This insulator is ideal for direct burial and submersible applications, providing moisture-tight sealing along with protection against physical damage.

Product Information

Standard Information

• Manufacturer: 3M
• MPN: 8425-8

Technical Specifications

• Dielectric Strength: 365 V/mil
• Elongation: 7.5%
• Material: EPDM Rubber
• Color: Black
• Applications: Indoor/Outdoor, Dig-in Repairs, Environmental Sealing
