3M 8424-8P Cold Shrink Tube 1-1/0 Awg

Product Description

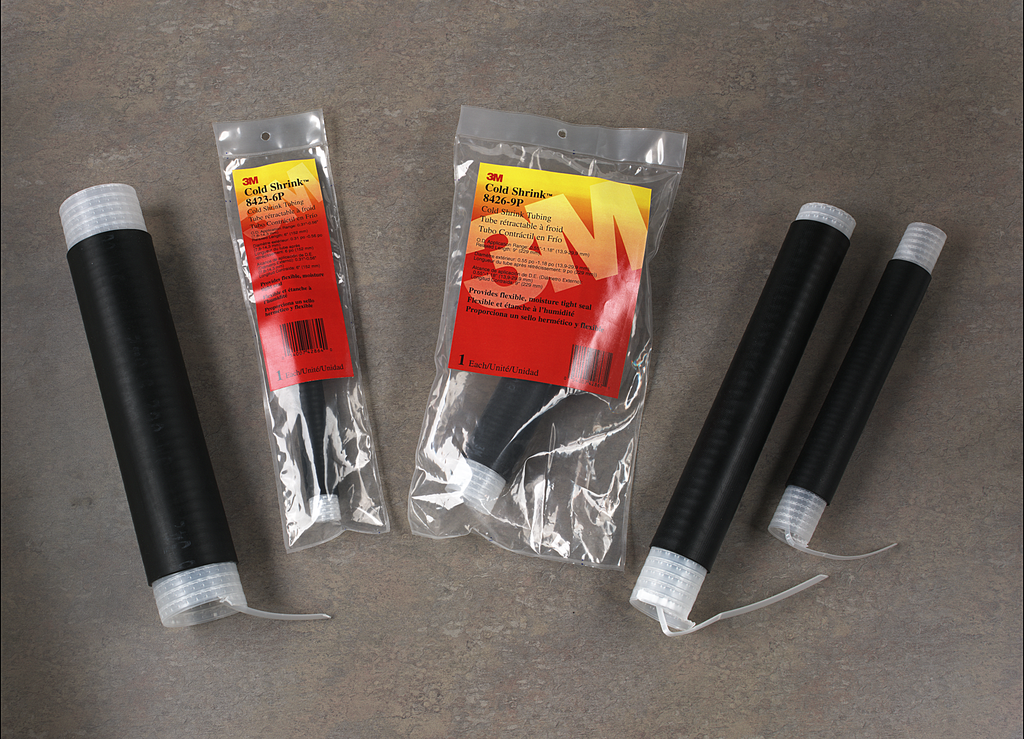

The 3M 8424-8P Cold Shrink Insulator provides reliable electrical insulation for cable splicing and terminations. This insulator is designed using a proprietary cold shrink delivery system from 3M, which allows for easy installation. The product is prestretched on a core that is removed at installation to create a moisture-tight seal.

• Withstands temperatures from -40 to 194 degrees F (-40 to 90 degrees C)
• Meets ANSI C119-1 standards for secondary splices rated up to 1 kV
• Made of EPDM rubber, ensuring durability and no chlorides or sulfur

Product Highlights

This cold shrink insulator is suitable for primary electrical insulation of solid dielectric insulated cables rated at 1000 volts. It is effective for environmental sealing in both electrical and non-electrical applications.

Product Information

Standard Information

• Manufacturer: 3M Co.
• Brand: 3M Electrical Products

Technical Specifications

• MPN: 8424-8P
• Voltage Rating: 1 kV
• Conductor Size: 1 to 1/0 AWG
• Cable Insulation Diameter: 0.82 inches
• Material: EPDM Rubber
• Number of Conductors: 1
• Length: 3 inches
