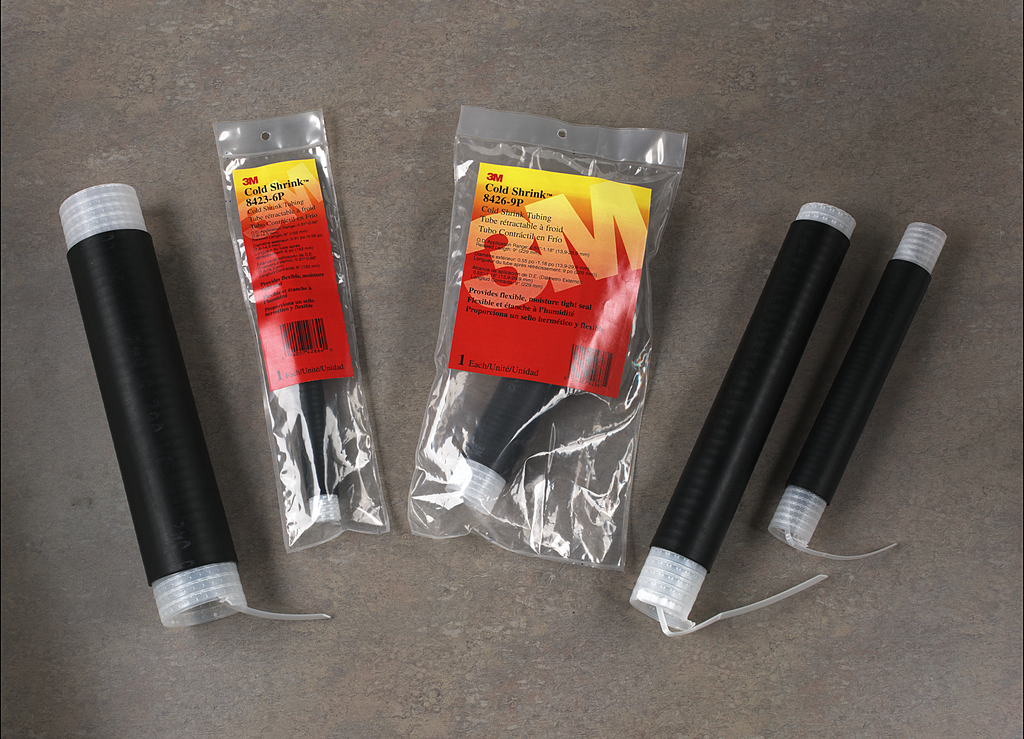

3M 8424-8 Cold Shrink Connector Insulator 10-1/0 AWG 1 kV

Product Description

The 3M 8424-8 Cold Shrink Connector Insulator is designed for electrical insulation and moisture sealing. This product accommodates a range of cable sizes and is suitable for various applications, including direct burial and underwater installations. With no tools needed for installation and no heat required, usage is straightforward and efficient.

• Provides moisture-tight sealing for high-voltage air-insulated connectors.
• Resists acids, alkalis, and ozone for enhanced durability.
• Withstands a temperature range of minus forty to one hundred ninety-four degrees Fahrenheit.

Product Highlights

This insulator is made from EPDM rubber and does not contain harmful chlorides or sulfur. It is ANSI certified, ensuring compliance with electrical safety standards.

Product Information

Standard Information

• Brand: 3M
• MPN: 8424-8

Technical Specifications

• Size Range: 1 AWG to 1/0 AWG
• Type: Cold Shrink Splice
• Voltage Rating: 1 kV
• Material: EPDM Rubber
• Overall Length: three inches
• Operating Temperature: -40 to 194 degrees Fahrenheit
• Diameter: 20.9 mm
