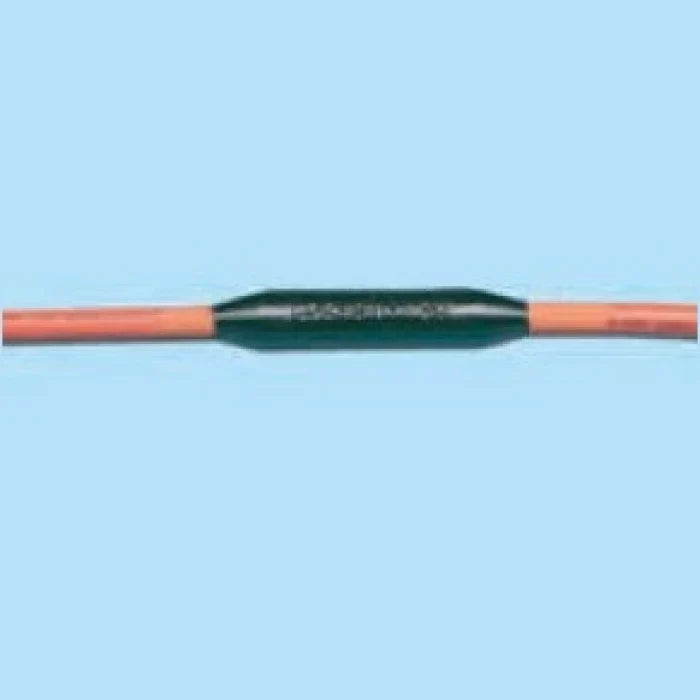

3M 82-F1 Flexible Resin Cable Splice Kit 1000 VAC 0.62 to 0.9 in Dia Cable 6 to 1/0 AWG Conductor

Product Description

The 3M 82-F1 is a flexible resin in-line cable splice kit designed to handle splicing for non-shielded portable power cables. It supports cable diameters ranging from zero point sixty-two to zero point nine inches and accommodates conductors of six to one hundred AWG. The kit includes essential components such as Scotch rubber splicing tape and Scotchcast compound for a reliable splice.

• Suitable for splicing both multi-conductor and single conductor cables.
• Features a flame-retardant, self-curing resin for durability.
• Designed to prevent cable hang-ups and ensure easy installation and handling.

Product Highlights

This splice kit is ideal for applications requiring robust and flexible connections in various environments.

Product Information

Standard Information

• Brand: 3M
• MPN: 82-F1

Technical Specifications

• Voltage Rating: 1000 VAC
• Cable Diameter Range: 0.62 to 0.9 inches
• Conductor Size Range: 6 to 1/0 AWG
• Insulation OD: 0.25 to 0.8 inches
• Conductors: 3/4
• Type: Compression/In-Line Connector
• Flame Retardant: Yes
• Application: For use with inline compression connectors
