3M 82-AN MMM 10-2AWG SPLICE KIT

Product Description

The 3M 82-AN MMM 10-2AWG Splice Kit is designed for effective insulation and sealing of high voltage cables. This inline resin kit is suitable for both single conductor and multiple conductor applications, offering reliable performance in various environments.

• Splices unshielded wet or dry cables efficiently.
• Ideal for direct burial and weather-exposed locations.
• Rated for use with cables up to five kilovolts.

Product Highlights

This kit is a go-to solution for professionals working in electrical installations that require safe and reliable cable splicing.

Product Information

Standard Information

• Manufacturer: 3M
• MPN: 82-AN

Technical Specifications

• Application: Direct Burial Locations or Weather Exposed Applications
• Cable Diameter: 0.6 inches; 3/4 inches
• Cable Type: Single Conductor/Portable; Non-Shielded
• Conductor Size: 10 to 2 AWG
• Connector Type: Crimp Sleeve/In-Line

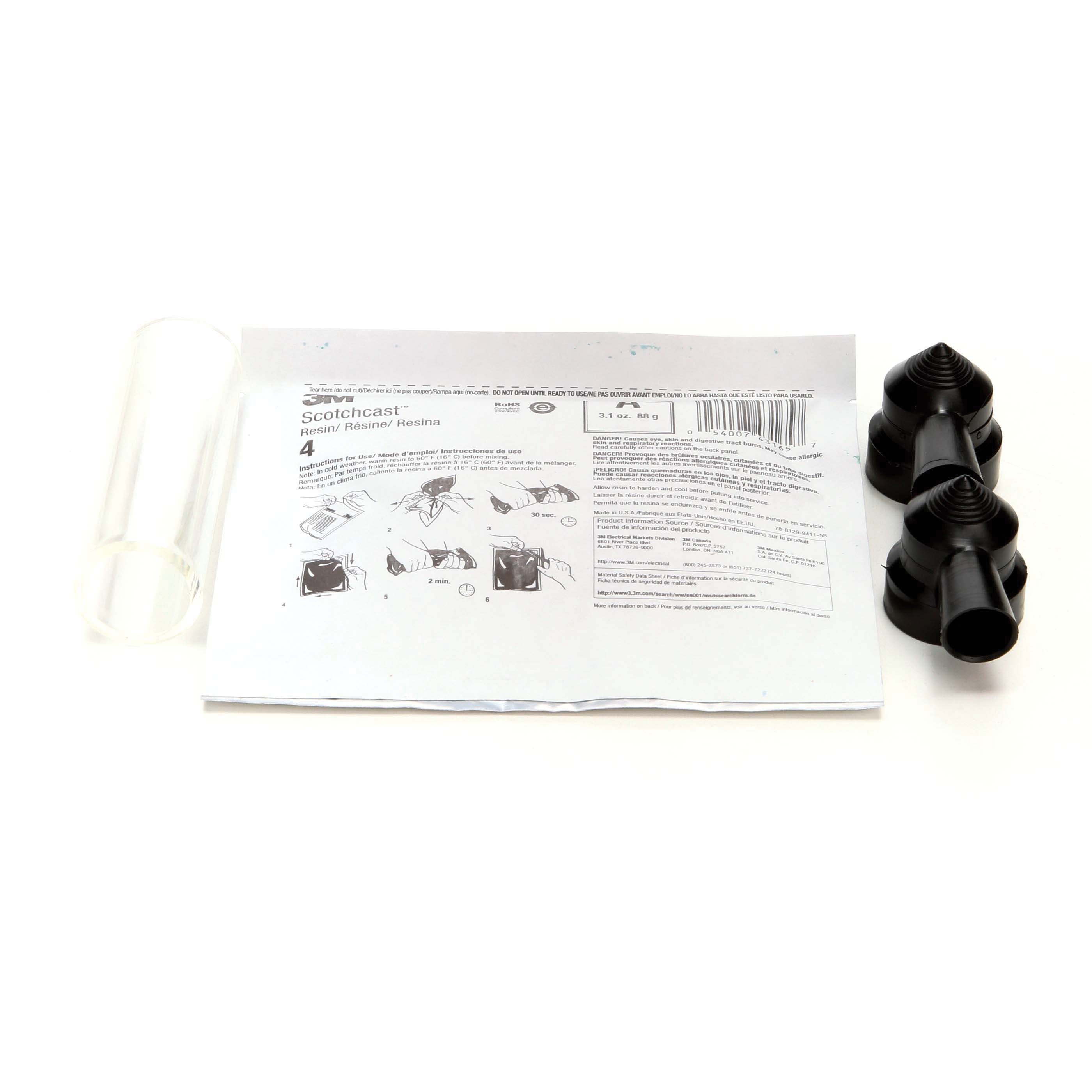

• Includes: Mold Body, Pouring Spouts, Electrical Tape, and #4 Resin
• Insulation Size: 0.406 to 0.75 inches OD
• Material: Epoxy; Resin
• Series: 82-AN; 82-A
• Splice Length: 4-1/2 inches
• Temperature Rating: 90 degrees Celsius
• Voltage Rating: 5 kV Single Conductor, 1 kV Multi-Conductors
