3M 82-A3N 3M CABLE SPLICE KIT INLINE RESIN

Product Description

The 3M Scotchcast Inline Resin Power Cable Splice Kit is a reliable solution for insulating and sealing unshielded cables. This kit is designed for use with five kV rated single-conductor cables and one kV rated multi-conductor cables. It is suitable for installations in weather-exposed areas and direct burial applications.

• Insulates and seals unshielded, single-conductor and multi-conductor cables
• Designed for both wet and dry splicing
• UL listed and compliant with RoHS 2011/65/EU

Product Highlights

Use this splice kit for effective sealing in harsh environments. It includes essential components for installation.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 82-A3N

Technical Specifications

• Voltage: 5 kV Single Conductor, 1 kV Multi-Conductors
• Material: Epoxy
• Conductor Size: 3/0 AWG to 400 kcmil
• Insulation Size: 1 to 1.563 inches OD
• Splice Length: 9 inches
• Cable Type: Single Conductor/Portable

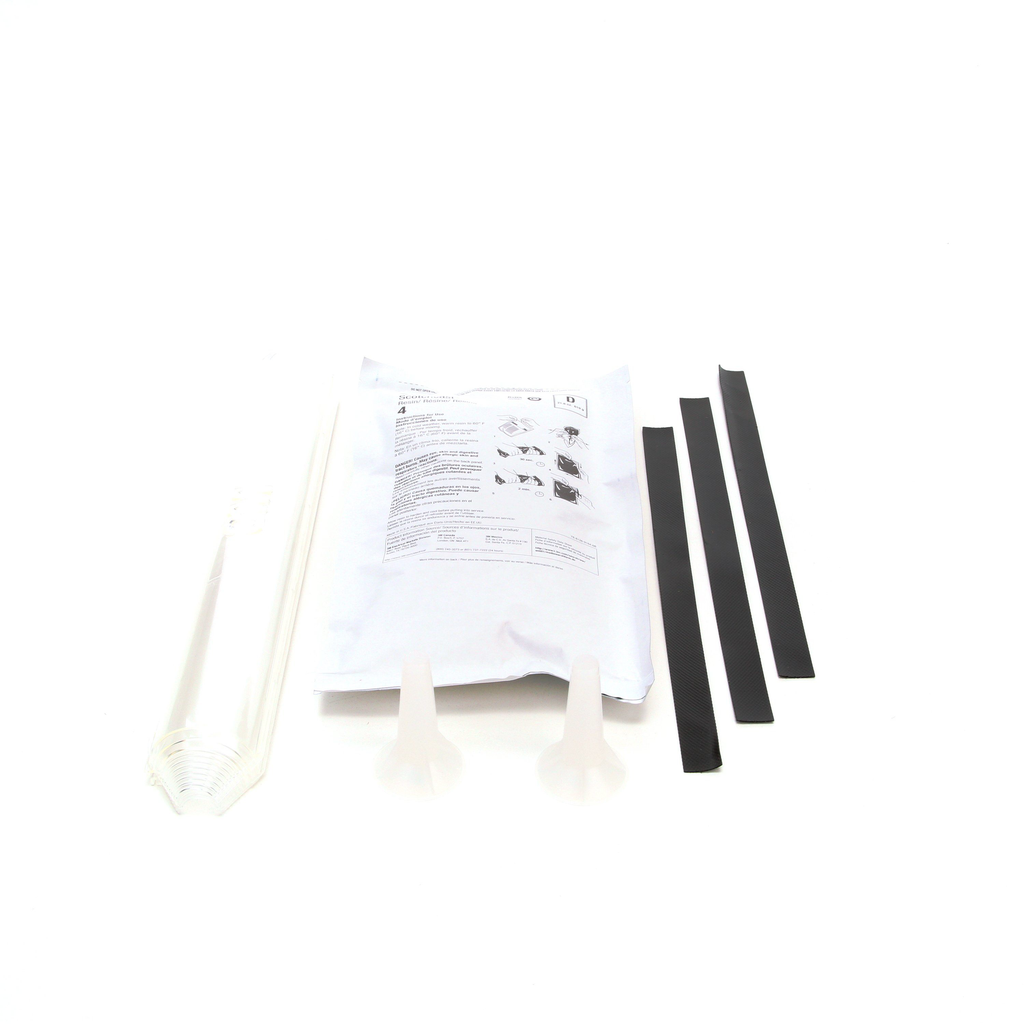

• Includes: Mold Body, Pouring Spouts, Electrical Tape, and Resin
• Standards/Approvals: OSHA 29 CFR 1910.1200, UL File No. E102356, RoHS 2011/65/EU
