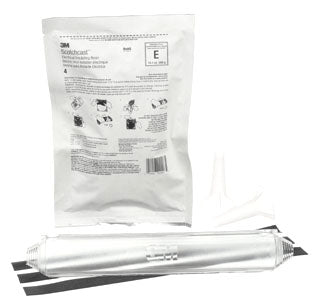

3M 82-A2N Scotchcast Inline Resin Power Cable Splice Kit 1-5kV

Product Description

The 3M 82-A2N Scotchcast Inline Resin Power Cable Splice Kit is designed for insulating and sealing unshielded, single-conductor cables rated at 5 kV as well as multiple conductor cables rated at 1 kV. This kit is suitable for use in environments exposed to weather or for direct burial applications. It ensures reliable electrical connections in various settings.

• Designed for weather-exposed and direct burial locations
• Insulates and seals unshielded, single conductor and multiple conductor cables
• UL Listed and RoHS compliant

Product Highlights

This splice kit meets industry standards for splice types and is ideal for splicing non-shielded wet or dry cables. It includes materials such as a mold body, pouring spouts, electrical tape, and epoxy resin for effective results.

Product Information

Standard Information

• Brand: 3M
• MPN: 82-A2N

Technical Specifications

• Approval: UL
• Voltage Rating: 1 kV and 5 kV
• Insulator Type: Resin
• Conductor Size: 2 to 3/0 AWG
• Cable Type: Multiple Conductor, Single Conductor, Non-Shielded Wet/Dry
• Cable Insulation Outer Diameter: 0.625 to 1 inch

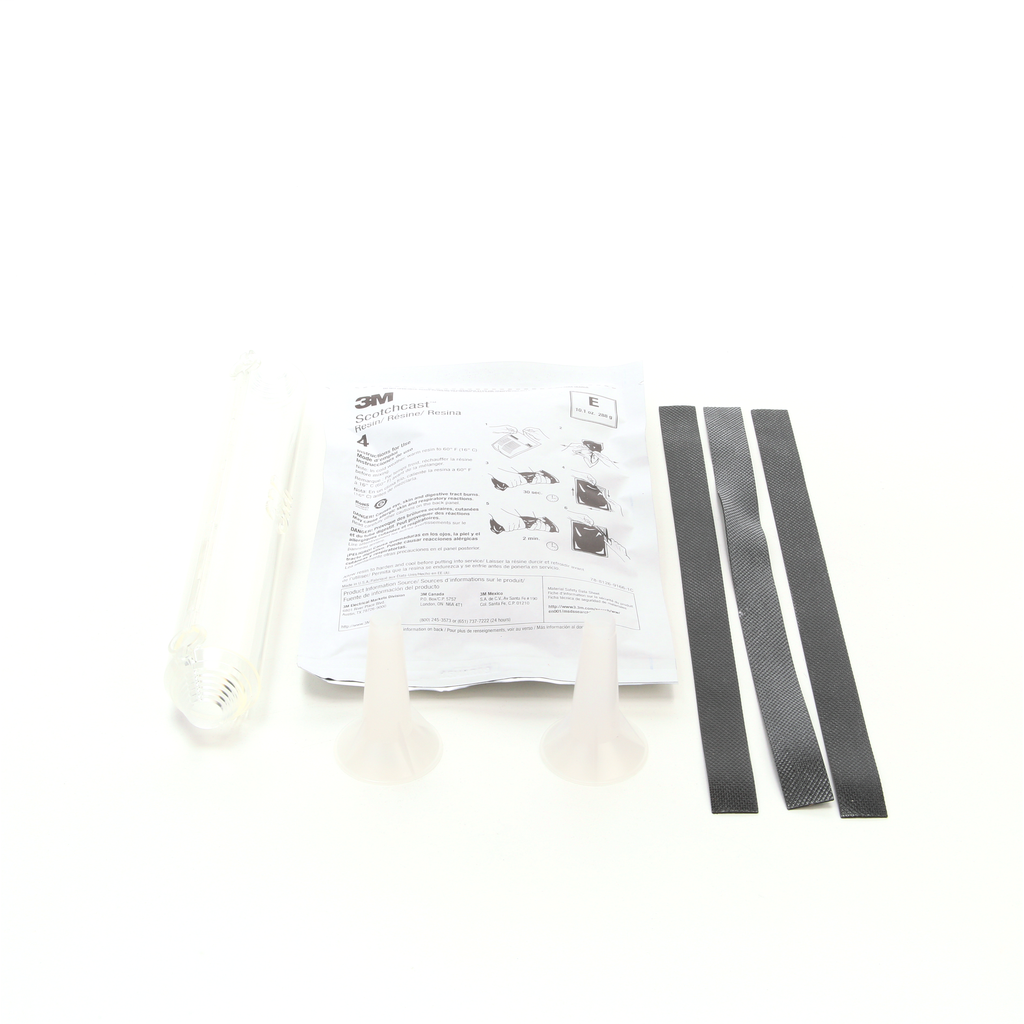

• Contents: Mold Body, Pouring Spout, Electrical Tape, No. 4 Resin
• Applications: For Splicing Non-Shielded Wet/Dry Cables and Single/Multiple Conductor Portable Cables
