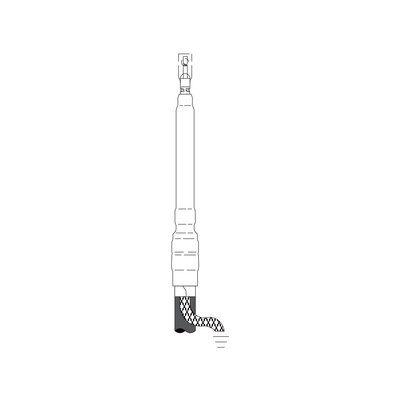

3M 7696-T-150 Cold Shrink QT-III Termination Kit 5-35 Kv Insulation 1.53-2.32 Inch

Product Description

The 3M 7696-T-150 Cold Shrink QT-III Termination Kit is designed for reliable performance in terminating indoor and outdoor medium voltage cables. This kit simplifies installation while providing excellent electrical performance and stress control. It supports a wide range of conductor sizes making it versatile for various applications.

• Non-tracking silicone rubber insulation ensures durability.
• Voids are eliminated to tape shield, wire shield, and UniShield power cables.
• Includes three non-skirted, one-piece, three-phase cold shrink terminations.

Product Highlights

This termination kit is suitable for use with solid dielectric shielded power cables rated from five to thirty-five kilovolts.

Product Information

Standard Information

• Manufacturer: 3M Co.
• Type: Cold Shrink QT-III

Technical Specifications

• Voltage Rating: 5 to 35 Kilovolt
• Conductor Size: 1750 to 2000 kcmil (5 Kilovolt), 1500 to 2000 kcmil (8 Kilovolt), 1250 to 2000 kcmil (15 Kilovolt), 900 to 1750 kcmil (25/28 Kilovolt), 700 to 1500 kcmil (35 Kilovolt)
• Cable Insulation Outer Diameter: 1.53 to 2.32 Inch
• BIL Rating: 150 Kilovolt
• Number of Terminations: 3
• Application: Indoor
