3M 7695-S-4 Cold Shrink 3 Terms/Kit 4 Skirt Termination Kit

Product Description

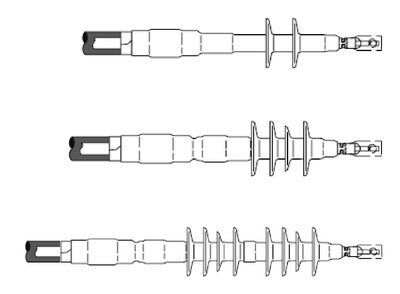

3M Cold Shrink 7695-S-4 is a terminations kit designed for reliable performance in medium voltage cable applications. It provides easy installation and is suitable for both indoor and outdoor setups. This kit includes essential components such as three skirted terminations and a comprehensive instruction manual for installation guidance.

• High dielectric material controls electric field stress.
• Applicable for various voltage ratings including five kV to twenty-eight kV.
• Compatible with tape shielded and wire shielded cables.

Product Highlights

This product allows for void-free sealing on power cables and offers durability under damp conditions.

Product Information

Standard Information

• Brand: 3M
• MPN: 7695-S-4

Technical Specifications

• Voltage Rating: 5 to 25/28 kV
• Conductor Size Compatibility: 700 to 1500 kcmil (5 kV), 600 to 1250 kcmil (8 kV), 500 to 1000 kcmil (15 kV), 250 to 800 kcmil (25/28 kV)
• Insulation Outer Diameter: 1.05 to 1.8 inches
• Insulator Material: Silicone rubber
• BIL Rating: 150 kV
• Includes: (3) Hi-K Silicone Rubber Termination, (3) Constant Force Spring, (3) Pre-Formed Ground Braid, (6) Mastic Seal Strip, (1) Copper Foil Shielding Tape Strip, (1) Cable Preparation Kit, (1) Instruction Sheet
• Product UPC: 05400742214
• Applications: Outdoor
