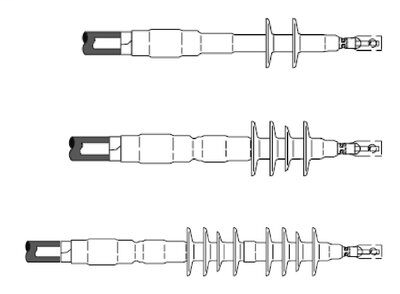

3M 7694-S-4 Cold Shrink 3 Terms/Kit 4 Skirt Termination Kit

Product Description

3M Cold Shrink 7694-S-4 is a termination kit designed for reliable cable terminations in both indoor and outdoor medium voltage applications. This kit includes multiple components that ensure a tight seal, critical for maintaining cable integrity. The termination is suitable for various cable types and sizes, providing flexibility in application.

• Provides a void-free seal for tape shield, wire shield, and UniShield power cables
• Manufactured from durable silicone rubber for better resistance to environmental factors
• Designed for use in outdoor applications, ensuring performance in various conditions

Product Highlights

This termination kit features a high dielectric constant material that manages electric field stress effectively, enhancing operational safety.

Product Information

Standard Information

• Manufacturer: 3M
• MPN: 7694-S-4

Technical Specifications

• Type: QT-III
• Voltage Rating: 5 to 28 Kilovolt
• Conductor Size: 500 to 750 kcmil (5 kV), 350 to 700 kcmil (8 kV), 4/0 AWG to 500 kcmil (15 kV), 2 to 250 kcmil (25/28 kV)
• Installed Length: 12.25 inches
• Insulation Outer Diameter: 0.83 to 1.53 inches
• BIL Rating: 150 Kilovolt
• Number of Terminations: 3
• Insulator Material: Silicone Rubber
