3M 7693-S-INV-4 Cold Shrink QT-III Termination Kit 5 to 35 kV (4 Skirt)

Product Description

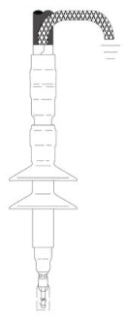

The 3M Cold Shrink 7693-S-INV-4 Termination Kit is designed for outdoor use with a voltage rating of five to thirty-five kV. This kit includes three skirted terminations suitable for tape shield, wire shield, and UniShield power cables. The high dielectric constant material, combined with sealing compounds, ensures a reliable and effective seal that can withstand significant electrical stress.

• Outdoor application suitable
• Provides a void-free seal for various types of cables
• Designed for easy installation in tight spaces

Product Highlights

High-quality materials and design ensure durability and reliability in electrical connections.

Product Information

Standard Information

• Brand: 3M
• MPN: 7693-S-INV-4

Technical Specifications

• Voltage Rating: 5 to 35 kV
• Conductor Size: 300 to 500 kcmil (5 kV), 250 to 500 kcmil (8.7 kV), 2/0 AWG to 300 kcmil (15 kV), 2 to 4/0 AWG (25/28 kV), 2 to 2/0 AWG (35 kV)
• Insulation Outer Diameter: 0.72 to 1.29 inches

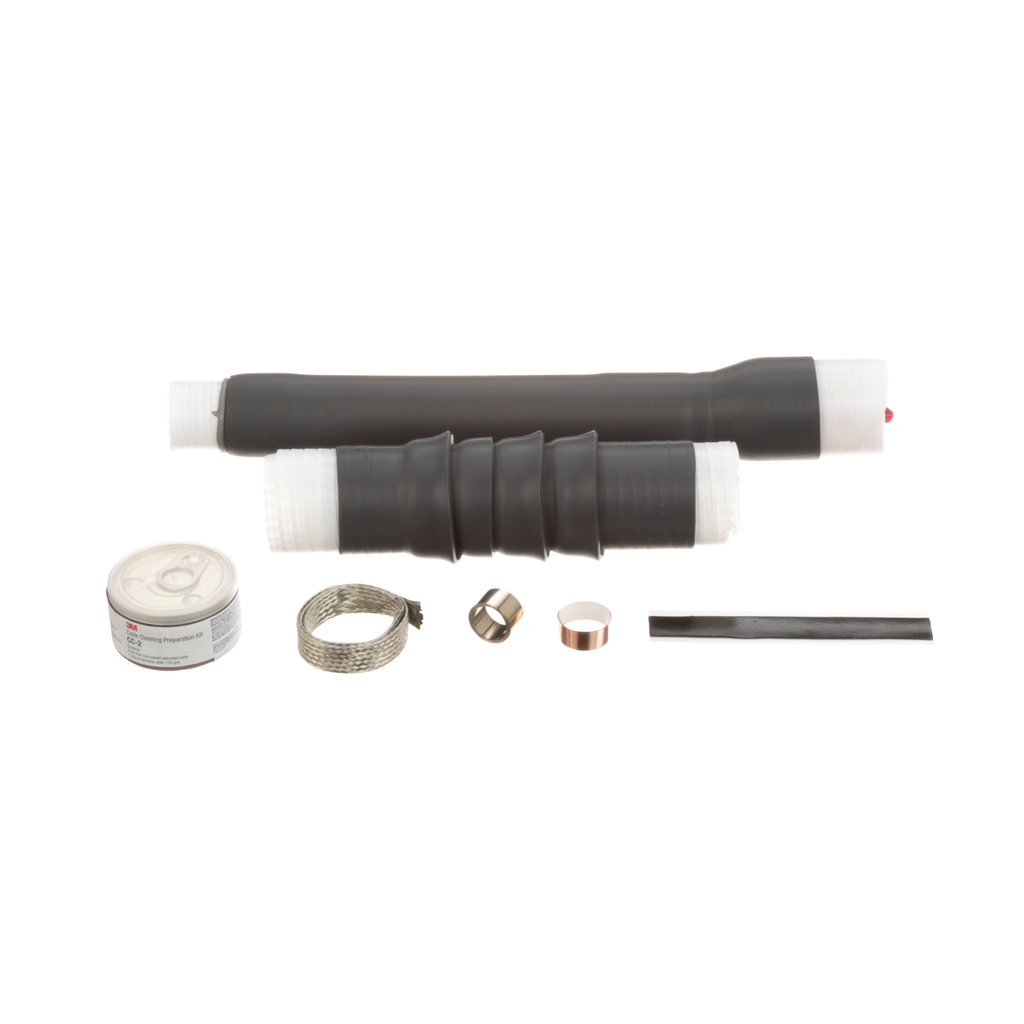

• Includes: (3) Hi-K Silicone Rubber Termination, (3) Tracking Resistant Silicone Rubber Skirt Assembly, (3) Pre-Formed Ground Braid, (3) Constant Force Spring, (6) Mastic Seal Strip, (1) 3M Cable Preparation Kit, (1) Instruction Sheet
• Insulator Material: Silicone Rubber
• Contents: 3 Terminations
• Standards: IEEE
