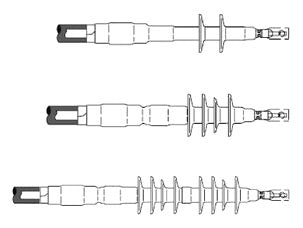

3M 7693-S-4 Cold Shrink QT-III Termination Kit 5 to 25/28 kV 4 Skirt

Product Description

The 3M 7693-S-4 Cold Shrink QT-III Termination Kit is designed for terminating medium voltage cable outdoors. This kit ensures reliable performance and allows for easy installation. It accommodates a range of conductor sizes and is suitable for use with tape shield, wire shield, and UniShield power cables.

• Compatible with 5 to 25/28 kV voltage ratings.
• Designed for outdoor applications with silicone rubber insulation.
• Includes all necessary components for set up and reliable performance.

Product Highlights

This termination kit features an effective void-free seal, enhancing cable reliability in various conditions.

Product Information

Standard Information

• Brand: 3M
• MPN: 7693-S-4

Technical Specifications

• Voltage Rating: 5 to 25/28 kV
• Conductor Size: 300 to 500 kcmil (5 kV), 250 to 500 kcmil (8 kV), 2/0 AWG to 300 kcmil (15 kV), 2 to 4/0 AWG (25/28 kV)
• Cable Type: Tape Shield, UniShield, Wire Shield
• Insulation Material: Silicone rubber
• BIL Rating: 150 kV

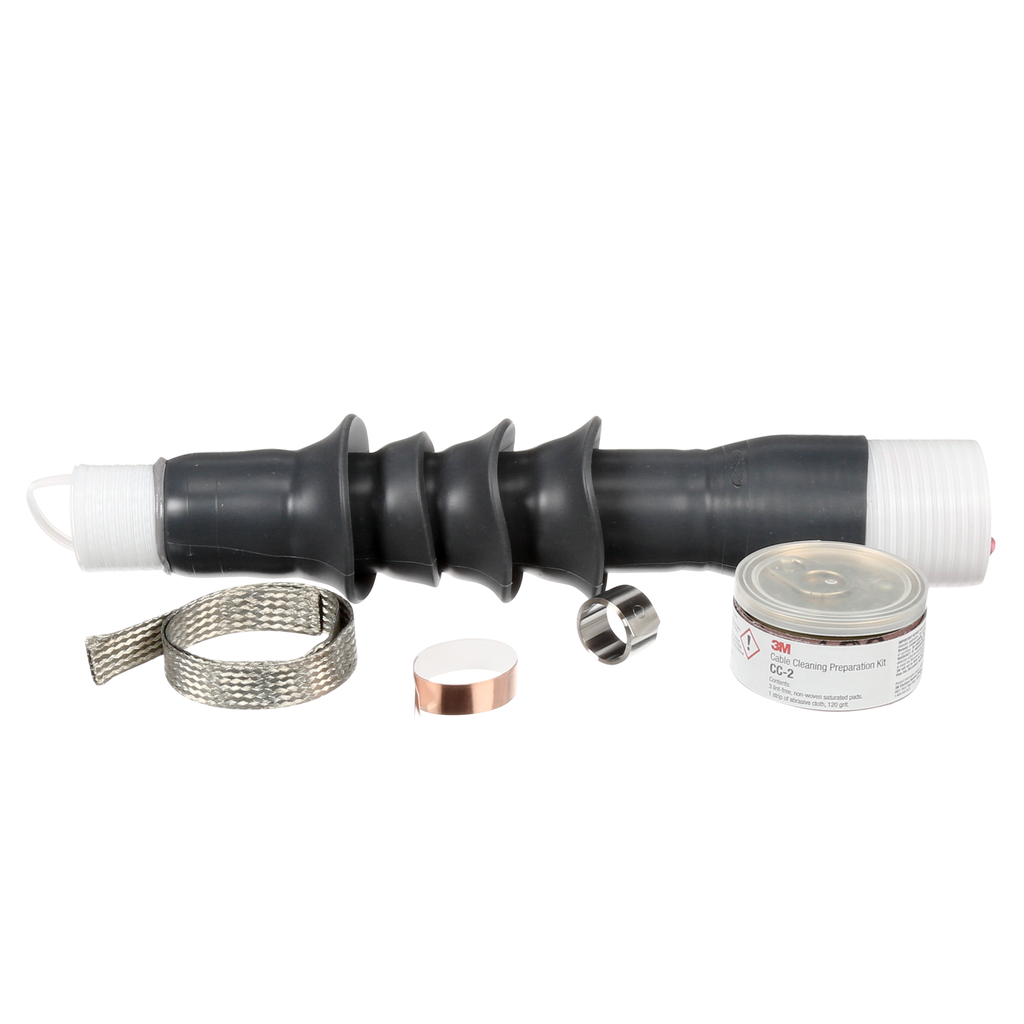

• Contents: (3) Hi-K Silicone Rubber Terminations, (3) Constant Force Springs, (3) Pre-Formed Ground Braids, (6) Mastic Seal Strips, (1/2) Copper Foil Shielding Tape Strip, (1) Cable Preparation Kit, (1) Instruction Sheet
• Installed Length: 12.25 inches
• Number of Conductors: 1
• Applicable Standard: IEEE
