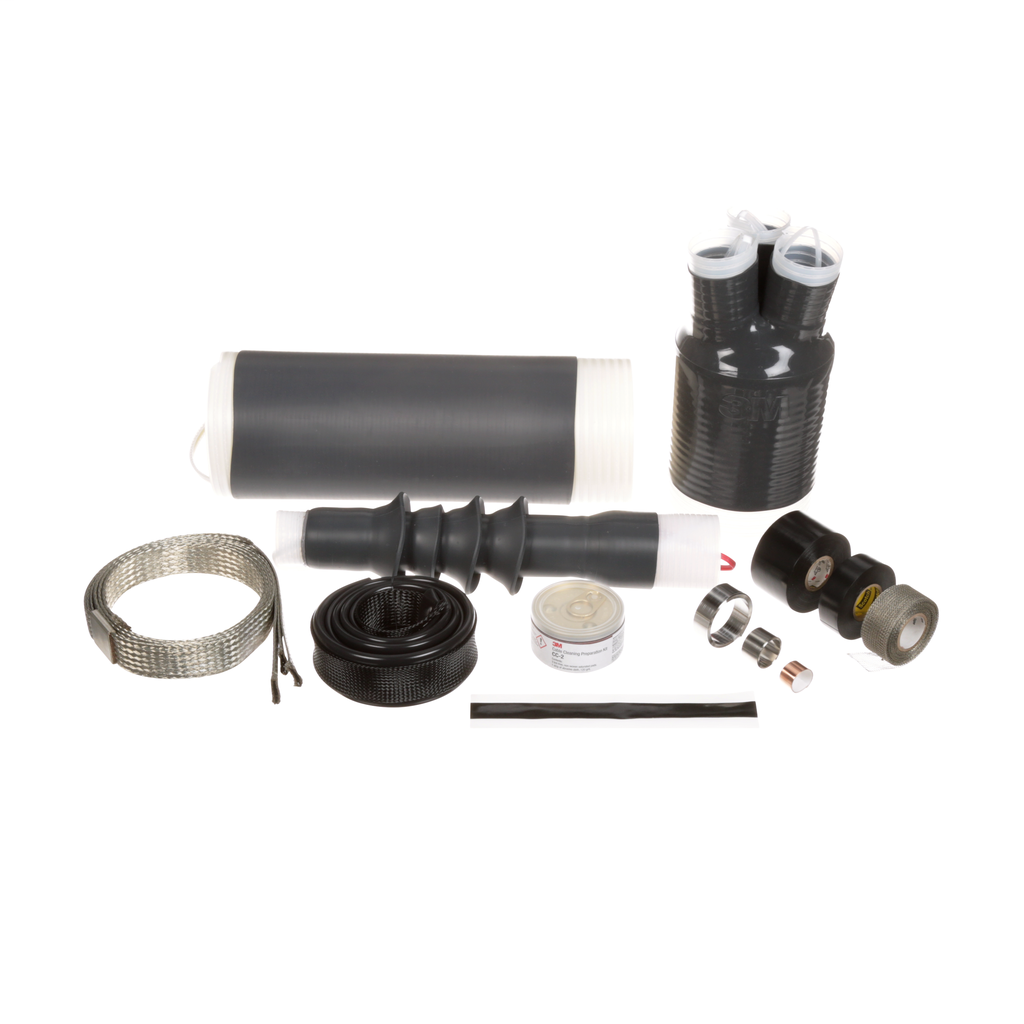

3M 7693-S-4-3G Outdoor 3 Conductor Cables Termination Kit with Ground Wires

Product Description

3M 7693-S-4-3G is designed for outdoor installations of medium voltage 3/C shielded power cables. This termination kit includes ground wires and is part of the Cold Shrink series, which offers reliable sealing for various cable types.

• Provides void-free sealing for tape shield, wire shield, and UniShield power cables.
• High dielectric-constant material enhances electric field stress distribution.
• Integrated design simplifies installation with constant radial pressure from sealing compounds.

Product Highlights

This termination kit is suitable for outdoor applications and ensures a tight seal, significantly reducing the risk of moisture intrusion.

Product Information

Standard Information

• Manufacturer: 3M
• MPN: 7693-S-4-3G

Technical Specifications

• GTiN: 00054007436843
• Voltage Rating: 5 to 25 kV
• Cable Type: Tape Shield; UniShield; Wire Shield
• Conductor Size: 1 AWG to 500 KCMIL
• Insulation Diameter: 0.92 to 1.18 inches
• BIL Rating: 150 kV
• Contents: (3) Hi-K Silicone Rubber Termination, (1) Silicone Rubber Breakout Boot
• Applicable Standard: IEEE
