3M 7693-S-4-3-RJS Cold Shrink QT-III 3/C Termination Kit 3.3-25/28 kv

Product Description

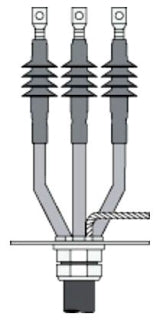

The 3M Cold Shrink QT-III 7693-S-4-3-RJS Termination Kit is designed for effective cable sealing in outdoor applications. It includes a skirted, three-phase termination kit ideal for tape shield, wire shield, and UniShield power cables. This kit utilizes high dielectric constant materials and sealing compounds, which allow it to operate effectively under voltages ranging from 3.3 kV to 28 kV.

• Integrated design for ease of installation.
• High dielectric constant material for electric field stress management.
• Suitable for outdoor and cabinet-mount installations.

Product Highlights

This termination kit provides a reliable, void-free seal, ensuring durability and safety for electrical systems.

Product Information

Standard Information

• Manufacturer: 3M
• MPN: 7693-S-4-3-RJS

Technical Specifications

• Voltage Rating: 3.3 to 25/28 kV
• Insulation Outer Diameter: 0.92 to 1.18 inches
• Conductor Size: 2/0 AWG to 250 KCMIL
• Number of Conductors: 3
• Connector Type: Lug (Not Included)
• Insulator Material: Silicone Rubber

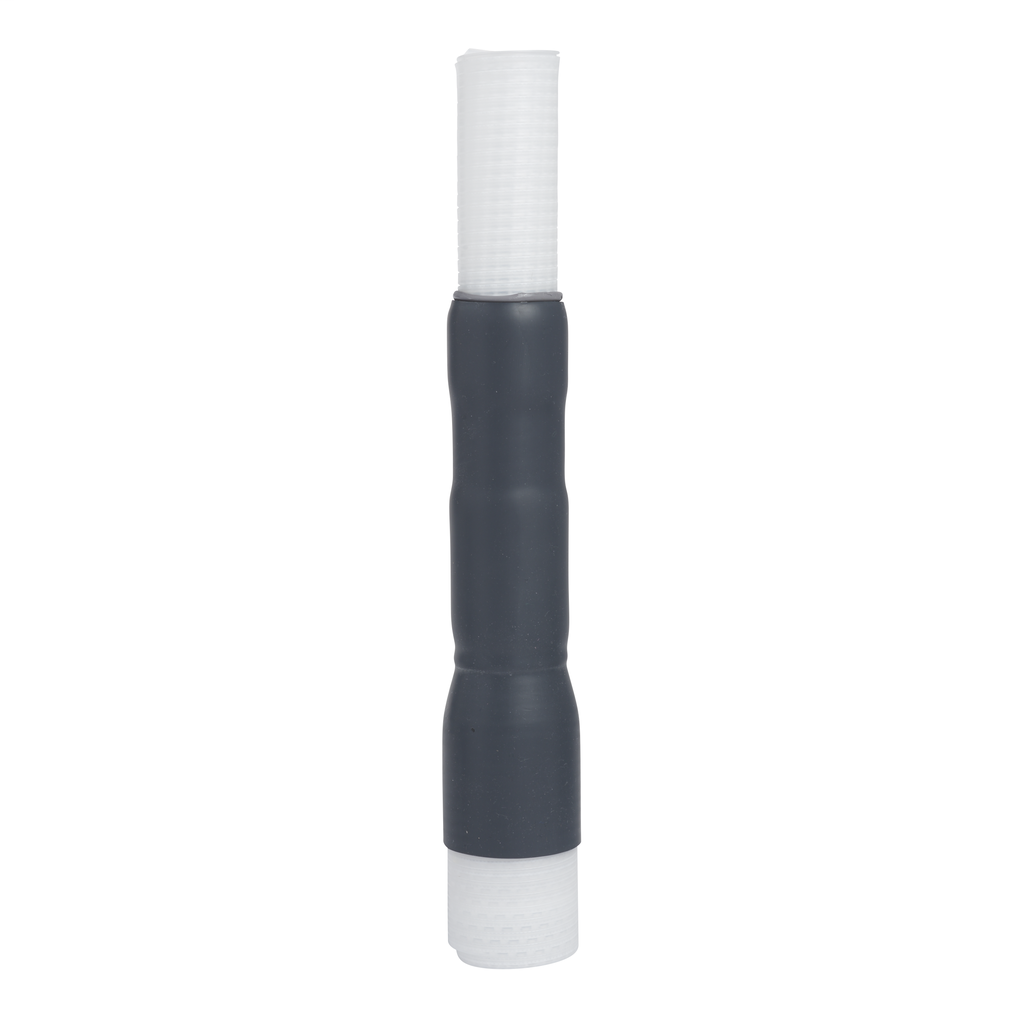

• Contents: (3) Hi-K Silicone Rubber Termination, (3) Silicone Rubber Phase Re-Jacketing Sleeves
• Applications: Outdoor
