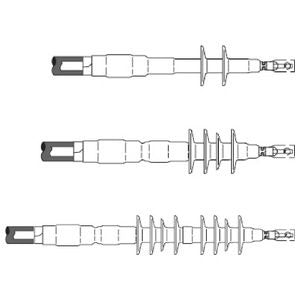

3M 3M 7692-S-4 Cold Shrink 4 Skirt Termination Kit 5-25/28 kV (3 Terminations)
3M 3M 7692-S-4 Cold Shrink 4 Skirt Termination Kit 5-25/28 kV (3 Terminations)

3M 7692-S-4 Cold Shrink 4 Skirt Termination Kit 5-25/28 kV (3 Terminations)

3M
Brand: 3M
SKU: 7692-S-4
Availability: In Stock

Ships same day if ordered by 12 pm
$1,128.28
$1,128.28
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

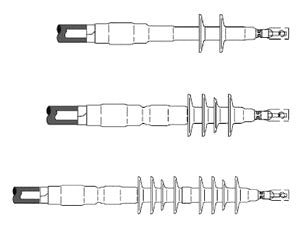

3M 7692-S-4 is a Cold Shrink QT-III outdoor 4-skirt termination kit for shielded medium- and high-voltage power cables. The kit includes three 1-piece hi-K silicone rubber skirted terminations and accessory components and provides a void-free seal for tape, wire and UniShield shielding. It supports a range of conductor sizes across 5 kV to 25/28 kV applications and carries a 150 kV BIL rating.

  • Three 1-piece hi-K silicone rubber skirted terminations with constant force springs, pre-formed ground braid, mastic seal strips, copper foil shielding tape and cable preparation kit
  • Supports conductor size ranges: 5 kV: 4/0 AWG–400 kcmil; 8 kV: 3/0 AWG–300 kcmil; 15 kV: 2–4/0 AWG; 25/28 kV: 2–1/0 AWG
  • Cold-shrink QT-III design provides void-free sealing, electrical stress control and compact installation for outdoor shielded cable terminations (150 kV BIL)

Product Highlights

Cold-shrink QT-III outdoor 4-skirt termination kit for shielded medium/high-voltage cables; three hi-K silicone rubber terminations; 150 kV BIL; supports multiple conductor size ranges.

Product Information

Standard Information

  • Brand: 3M
  • Manufacturer Part Number: 7692-S-4
  • Country of Origin: USA
Technical Specifications
Brand
3M
MPN
7692-S-4
Product Name
Cold Shrink QT-III 4 Skirt Termination Kit
Type
Cold Shrink, QT-III, Outdoor Skirted Termination Kit
Voltage
5 to 25/28 kV (rated range)
BIL Rating
150 kV
Cable Type
Tape Shield; UniShield; Wire Shield (shielded)
Conductor Size
5 kV: 4/0 AWG to 400 kcmil; 8 kV: 3/0 AWG to 300 kcmil; 15 kV: 2 to 4/0 AWG; 25/28 kV: 2 to 1/0 AWG
Insulator Material
Hi-K silicone rubber
Cable Insulation Outer Diameter
0.64 to 1.08 in.
Number of Terminations
3
Contents
(3) Hi-K silicone rubber terminations; (3) constant force springs; (3) pre-formed ground braid; (6) mastic seal strips; copper foil shielding tape; (1) cable preparation kit; (1) instruction sheet
Connector Type
Lug (not included)
Length
12.25 in.
Applications
Outdoor, medium and high voltage cable termination
Country of Origin
USA
GTiN / UPC
054007422112
Catalog Number
7692-S-4
ECCN
EAR99
UNSPSC
26121648
Insulator Type
4 skirted
